Save Floor Space and Production Time

Save valuable floor space without sacrificing any function. The SPN1 stands tall when it comes to precision, using a unique full-length pneumatic pressure beam to clamp stacked panels. The fully-encased saw blade enhances dust collection and safety while providing superior cut quality in all three of its cut modes: top-to-bottom, scoring, and reciprocating.

Reduce man-hours while maintaining control – the SPN1’s fully automatic cutting cycle starts with the press of a button and has a speed dial that can be adjusted on the fly. First, the pressure beam clamps the material over the entire kerf. Next, the saw blade protrudes from behind the table to cut the material. Finally, the blade retracts below the table for the return stroke as the pressure beam releases so you can position material for the next cut.

The SPN1 Vertical Beam Saw cuts down positioning time, operation effort, and footprint with ease.

THE SPN1 CUTS INTO

Standard Lengths of Cut: 5′, 8′ & 10′

7.5 HP Main Blade Motor

Variable Saw Carriage Speed

Unique Single Blade Scoring

Fully Automatic Cutting with Easy-To-Use Control Panel

Solid Table Surface Allows for Cutting of Small Parts

9 HP Main Blade Motor

Spray Mist Blade Coolant

2-Button Cut Cycle Start

Digital Ammeter for Blade Motor to Gauge Tool Life

Safety Enclosure Around Sides and Back of the Machine with UL Approved Safety Switches for Doors

4″ Depth of Cut

Bevel Cutting Capability

Digital Readout Material Indexing Stops

Automated Programmable Material Indexing Stop Systems

Contact a Sales Rep

Experience Upright Automated Precision

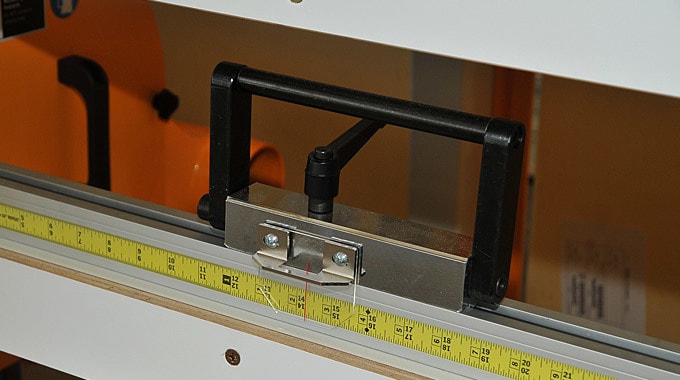

Speed up your operation with positioning presets for material part sizes. Use three measuring bars and a total of five manual flip stops so you can measure once and cut all day long.

Beam Saw

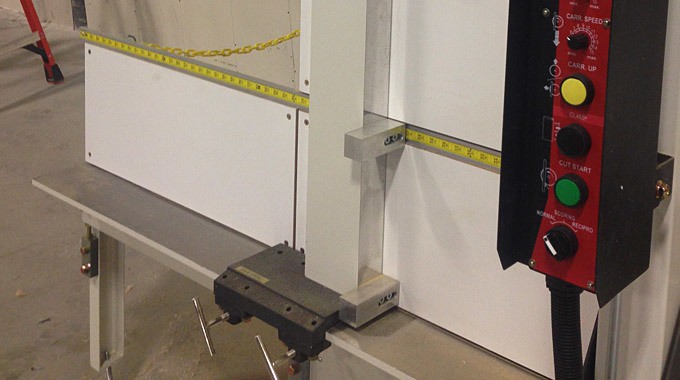

Maintain your material square and make loading and unloading easier with precision machined heavy-duty squaring fences.

Beam Saw

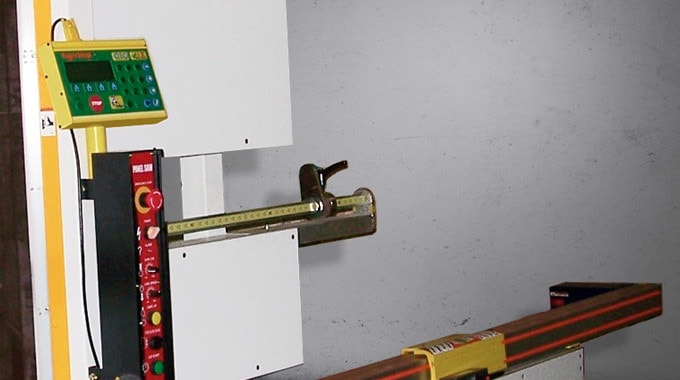

Take your production to the next level with automated programmable cutting systems. These optional upgrades are available from third parties with large download and storage capacity so you can set all the programs you need to increase speed and efficiency.

Vertical Beam Saw

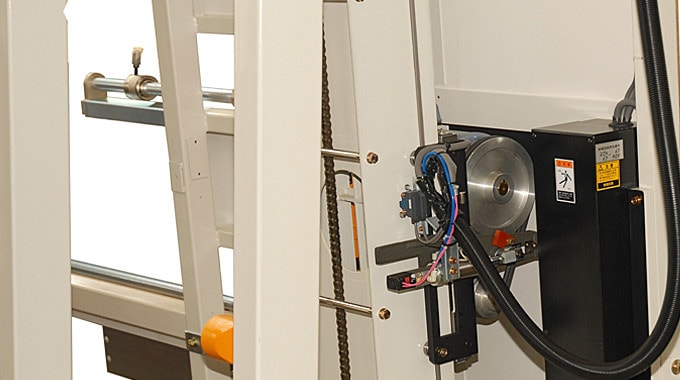

Reduce positioning and oversight time with a heavy-duty precision machined H-Beam. This ensures a straight line cut accuracy of +/- 0.005″ over the entire length of your materials. Just place it and let it do the work.

Verical Beam Saw

SPN1 FEATURES GALLERY

  • Three Cutting Modes

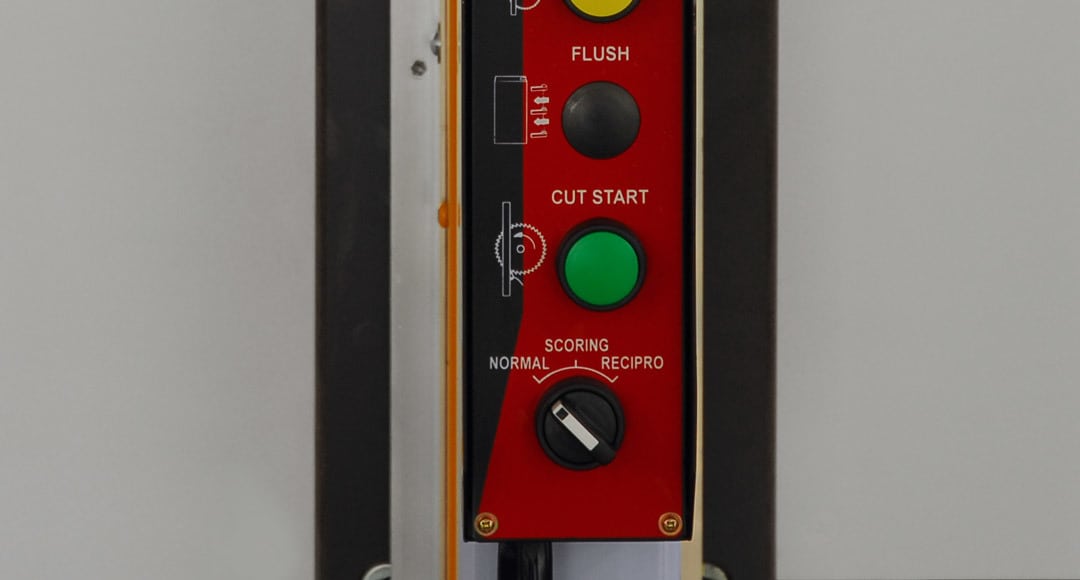

    Three Cutting Modes

    Get more function in your vertical saw. Toggle between modes with the flip of a switch: normal top-to-bottom cut, scoring (including scoring and full cut off), and reciprocating cut modes.

  • Unique Full-Length Pneumatic Pressure Beam

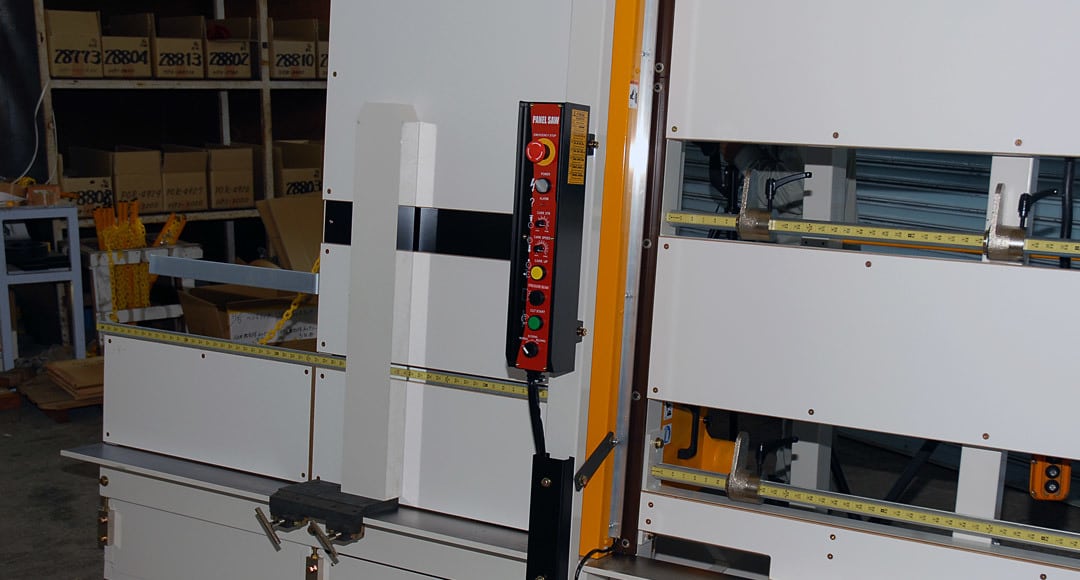

    Unique Full-Length Pneumatic Pressure Beam

    Firmly clamp down on material across the full kerf to hold it in place. With the saw blade fully encased, this also enhances safety.

  • Dual Dust Evacuation

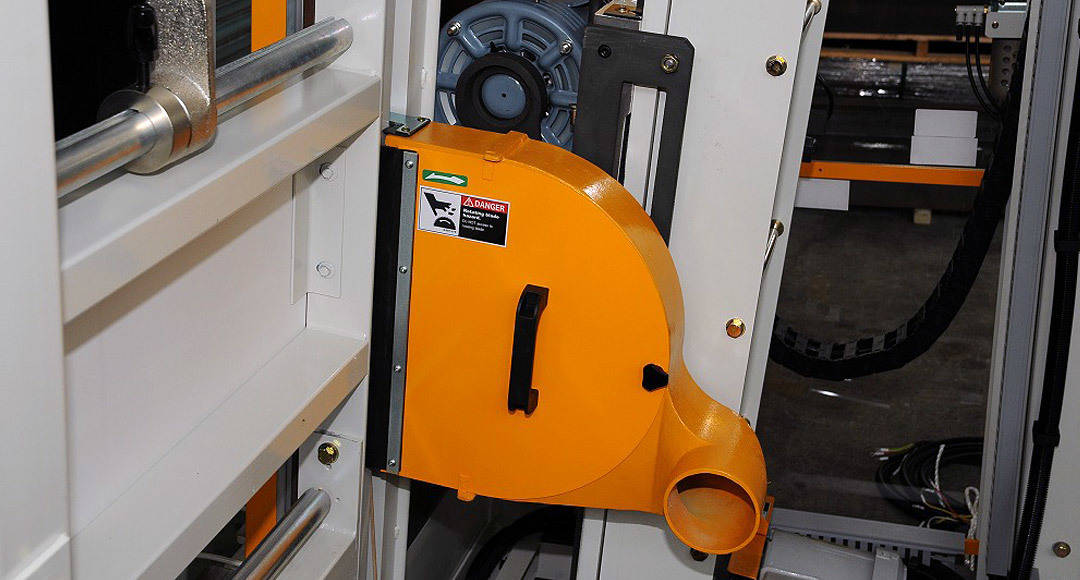

    Dual Dust Evacuation

    Keep your workspace clear with dust evacuation located at both the saw blade hood and at the end of pneumatic material pressure beam.

SPN1 VERTICAL BEAM SAW DETAILS

SPECIFICATIONS

  • 5′, 8′ & 10′
  • 5′, 8′ & 10′
  • 2.5″ – Optional 4″
  • SPECIFICATIONS

    • 4200 rpm (60 Hz)
  • 1.5 HP
  • 14″ Diameter x 1″ Bore
  • Normal, Reciprocating and Scoring
  • SPECIFICATIONS

    • 10-60 fpm Variable by AC Inverter
  • 7.5 HP – Optional 9 HP
  • Vinyl Clad PVC Ply-Board Optional Solid Phenolic Table Tops Available
