Top-of-the-Line 5-Axis CNC Machining

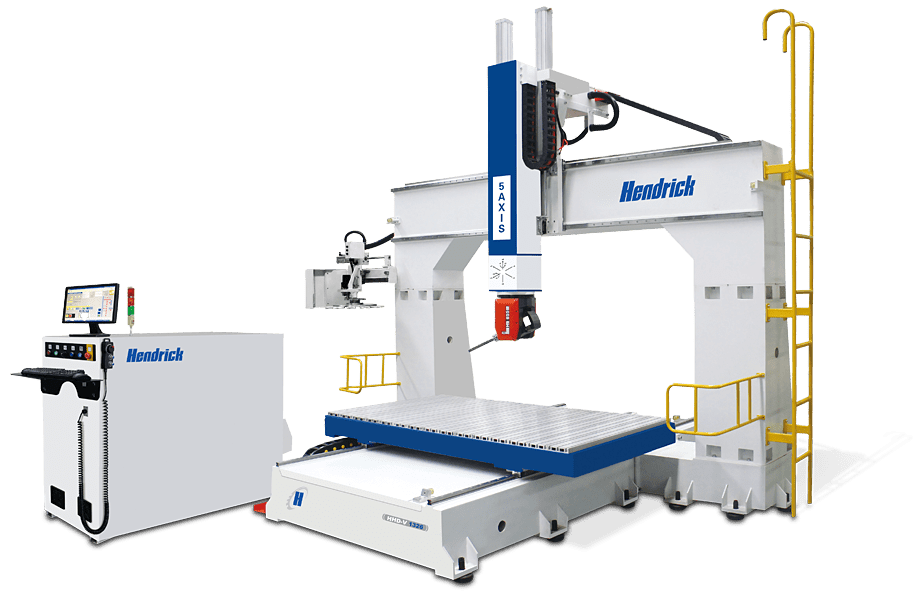

The HHD-V Series 5-axis CNC router accommodates the entire spectrum of industrial production. This routing and milling machine is incredibly versatile and designed to handle even the harshest production requirements. Each 5-axis CNC router is manufactured with state-of-the-art components and technology to deliver superior performance, exceptional positioning accuracy, and rapid cutting speeds. The real-time tool center point rotation and fully synchronized axes make this machine easy to use. Process everything from marine and automotive parts to molded product trimming on 3D curved surfaces. 5-axis machining is faster, more accurate, and more adaptable than ever thanks to the HHD-V Series 5-axis CNC router. Contact our experienced team of professionals today to learn more.

THE HHD-V ROUTES

HHD-V FEATURES

5 axis precision allows positioning and cutting along curved material surfaces with ease.

Cnc router for plastic

    • OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN-ready Ethernet interface.
    • International standard machine code language (G&M), integrates with all industry standard CAD/CAM programming software packages, built-in diagnostics, tool path graphics and more.
    • Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

Cnc router for plastic

Applications include but aren’t limited to the automotive, aviation, ship & yacht, chairs, fiberglass, and molded product trimming.



These router are designed to never quit, with best-in-class mechanical and electronic components, including OSAI Open control, Yaskawa drives, THK linear ways, precision ground helical rack and pinion, and precision ball screws.



MPG allows manual axis movements for fine adjustments.

Computer CNC router

HHD-V FEATURES GALLERY

  • Grooving Blades & Tooling

    Grooving Blades & Tooling

    Turnkey tooling package included as standard — All required depth control wheels, grooving profiles and main setup blade.

  • Angular Cutting Devices

    Angular Cutting Devices

    Two 0-50 degree angular cutting devices for left and right angles.

  • Rip Cut Position

    Rip Cut Position

    With one lever, the head quickly changes from vertical cross cutting to full length rip cutting mode.

HHD-V CNC ROUTER DETAILS

 5 axis cnc router

Click on the schematic to view fullscreen
