Heavy-Duty for Maximum Production & Precision

Versatile, heavy-duty CNC routing is yours to control with the HHD-R series. Manufactured to deliver 24/7 uptime, these powerful machines can position and cut at high speeds with exceptional finish quality. The HHD-R is highly adaptable. Choose between a moving gantry or moving table design. Both can be supplied with dual heads, which you can use independently to provide up to 16 tools on the automatic tool changers, or simultaneously to double your production in parts-per-hour. The HHD-R handles your most demanding production needs. Handling materials from solid wood furniture to carbon mixed compounds and everything in-between. When you’re ready to step production into high gear, the HHD-R CNC router is ready for you.

THE HHD-R SERIES ROUTES

Multi Zone Vacuum Table

Pop-Up Location Pins

Becker Vacuum Pump

HSD HSK63-F High Frequency Spindle

Automatic Rotary Tool Changer(s)

OSAI Open CNC Controller

Automatic Tool Length Measurement

HSD ISO30 High Frequency Spindle(s)

Spray Mist Coolant

Two Spindle Configuration with Two 8 Station Automatic Tool Changers

Independent Head Spacing by Program

Multi Boring Unit with 9 Vertical, 6 Horizontal Independently Programmable Boring Spindles on 32mm centers & 1 Saw Head

Multi Boring Unit with 14 Vertical, 6 Horizontal Independently Programmable Boring Spindles on 32mm centers & Two Saw Heads

Custom Table Sizes and Configurations Available

Any Job at Full Speed

Achieve exact positioning material with automatic adjustable pop-up stops.

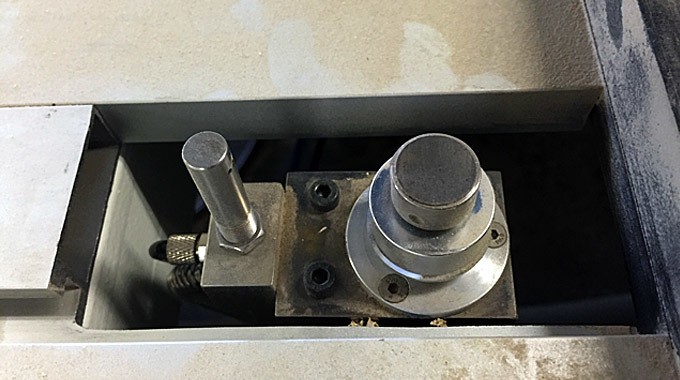

Eliminate depth cutting errors. All your operator has to do is insert the cutting tool into the tool holder, and the machine identifies the tool depth (Z) and enters the value into its library.

Computer Router

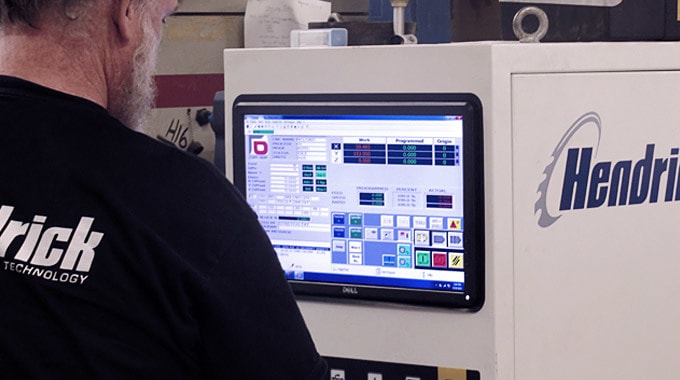

    • OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN-ready Ethernet interface.
    • International standard machine code language (G&M), integrates with all industry standard CAD/CAM programming software packages, built-in diagnostics, tool path graphics and more.

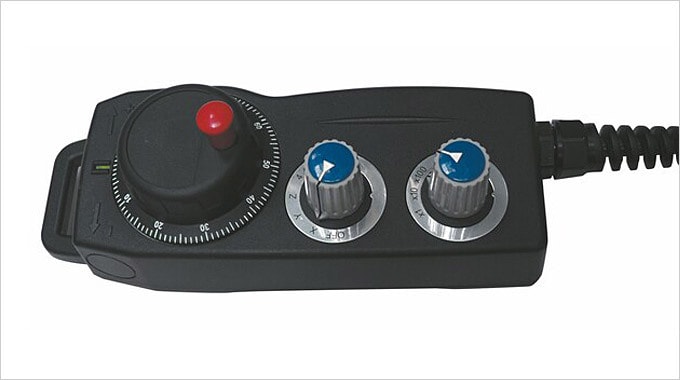

    • Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

Computer Router

MPG allows manual axis movements for fine adjustments.

Computer Router

HHD-R FEATURES GALLERY

  • Grooving Blades & Tooling

    Grooving Blades & Tooling

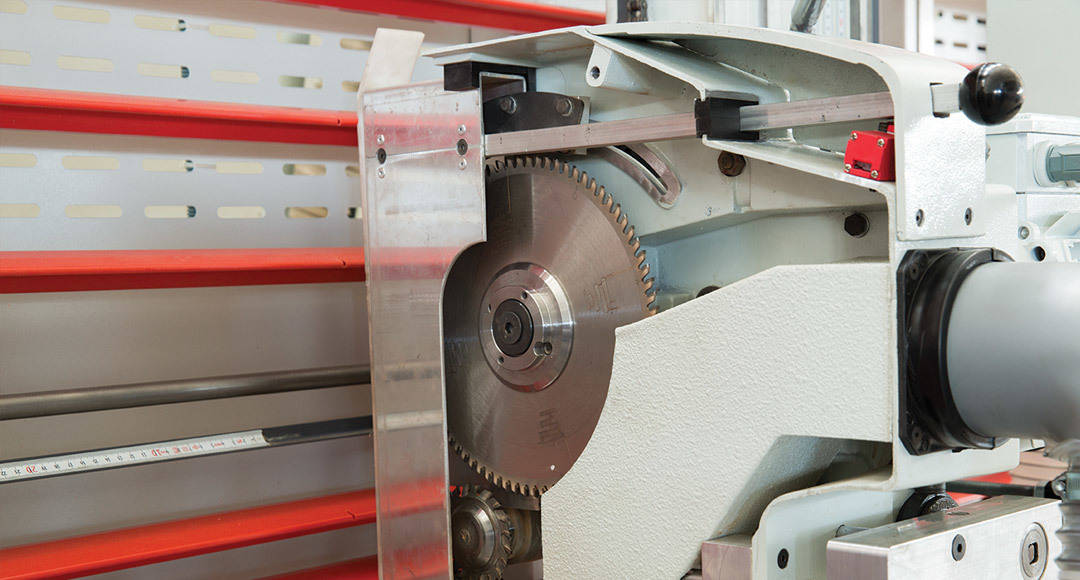

    Turnkey tooling package included as standard — All required depth control wheels, grooving profiles and main setup blade.

  • Angular Cutting Devices

    Angular Cutting Devices

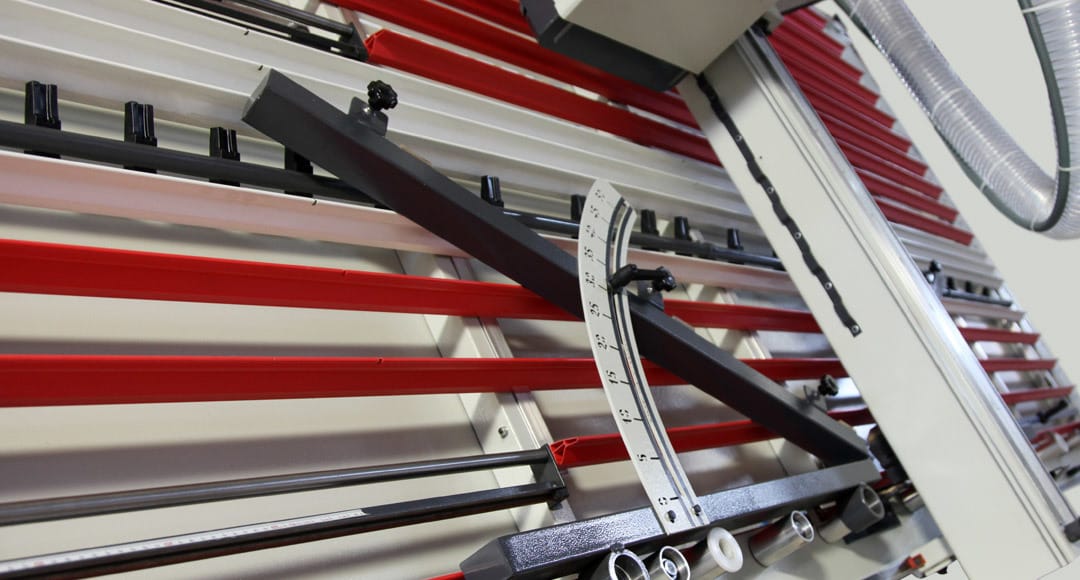

    Two 0-50 degree angular cutting devices for left and right angles.

  • Rip Cut Position

    Rip Cut Position

    With one lever, the head quickly changes from vertical cross cutting to full length rip cutting mode.

HHD-R CNC ROUTER DETAILS

SPECIFICATIONS
GANTRY TABLE

  • Precision Ground Helical Rack and Pinion Drive
  • Precision Ball Screw
  • SPECIFICATIONS

    • 8’ x 4’ (2500mm x 1230mm)
      10’ x 5’ (3100mm x 1560mm)
      12’ x 6.5’ (4020mm x 2050mm)
  • 13″ (330mm)
  • SPECIFICATIONS
    GANTRY TABLE

    • 2,400″ per min (60m/min)
  • Up to 800″ per min (20m/min)
  • 3 Axis CNC Router

    Click on the schematic to view fullscreen

    Hendrick Manufacturing

    ACCESSORIES

    From bits and blades to notching machines, complement your production line with official high-grade accessories.

    Hendrick Manufacturing

    SERVICE

    Expert service technicians are positioned across the country to help keep your investment in excellent condition.

    Hendrick Manufacturing

    SUPPORT

    Minimize your machine downtime with our support staff via phone or through remote diagnostics.
