SUPERIOR MACHINE, SUPERIOR OUTPUT.

The HM3 Horizontal Panel Saw is a powerful machine ideal for businesses looking for an alternative to expensive sliding table saws. Experience the difference of an automatic, safer, and more powerful machine. Making cuts and adjusting cutting speeds is effortlessly done with the push of a button. Efficiently load and unload materials with the air floatation on the machine’s material support tables. The pneumatic pressure bar secures stacked panels across the entire cutting length for a clean, precise cut. If you’re looking to increase speed and efficiency within your production line, the HM3 Horizontal Panel Saw is the machine your business needs.

THE HM3 CUTS INTO

Standard Lengths of Cut: 8′ & 10′

15 HP Main Blade Motor

Independent 2 HP Scoring System

Rack & Pinion Saw Carriage Travel by AC Servo

Variable Saw Carriage Speed

Fully Automatic Cutting with Easy-To-Use HMI Touchscreen Control Panel

Solid Table Surface Allows for Cutting of Small Parts

Air Flotation Tables

Spray Mist Blade Coolant

18 HP Main Blade Motor

Adjustable Pneumatic Pop Up Material Indexing Stops

Custom In-Feed / Out-Feed Table Sizes

Air Floatation In-Feed / Out-Feed Tables

Third Party Programmable Automated Material Indexing Stop Systems

SUPERIOR POWER AND PRECISION.

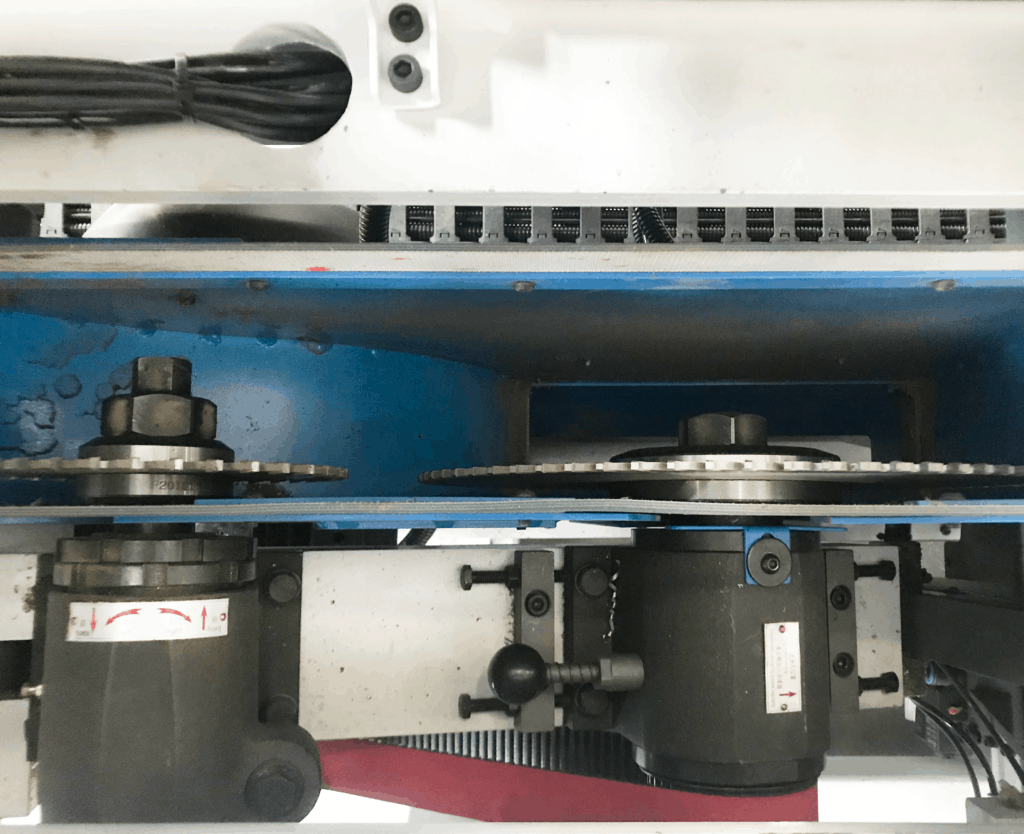

See the difference of 2 separate blades for scoring and cutting, effortlessly reducing chipping and ensuring a clean finish.

Effortlessly load and unload materials with optional air floatation table tops.

panel saw

HM3 SERIES BEAM SAW DETAILS

SPECIFICATIONS

  • 8′ & 10”
  • 8′ & 10′
  • SPECIFICATIONS

    • 1.5kW (2HP)
  • 11kW (15 HP)
  • SPECIFICATIONS

    • 14” Diameter
  • 6600 lbs
  • The Hendrick panel saw has dramatically increased our efficiency by reducing the critical set-up and production times for the many different jobs we run through the machine every day – Ease of operation, intuitive controls, and reliability make this saw the centerpiece in an operation providing just-in-time customized protective packaging as the critical final link in our diverse customer base’s supply chain
    Rand Whitney
    We have been quiet satisfied with our new Hendrick saw. With the efforts in manufacturing to improve quality, safety, and productivity, this saw has excelled in all areas. We are now able to cut materials we couldn’t cut previously, and we can cut them faster, more accurately, and much more safely.
    Saint Gobain Crystals
