3D MACHINING MADE EASY

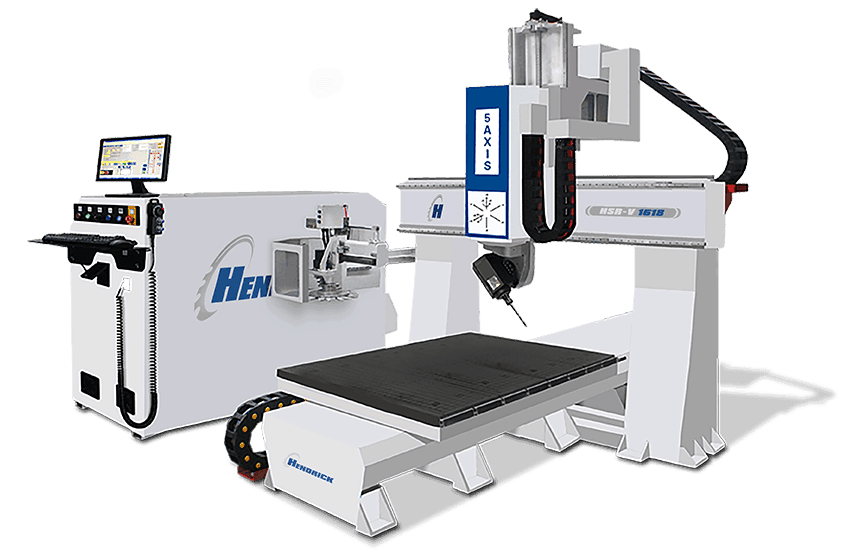

Get the complete spectrum of industrial production with precision 5 axis CNC routing with the HSR-V 5 axis CNC Router. Process everything from yacht and automotive parts to molded product trimming on 3D curved surfaces. With real time tool center point rotation and all 5 axes fully synchronized, it’s easy. Built with world class components, the HSR-V is designed to deliver optimal performance, while maintaining exceptional positioning and cutting speeds. The HSR-V is a versatile 5 axis machining center – increase productivity with our twin moving table model or save on floor space with our single stationary table, moving gantry model. CNC routing on 3D surfaces is faster, more accurate, and more adaptable than ever with the HSR-V 5 Axis CNC Router Series.

THE HSR-V ROUTES

5 Axis Features

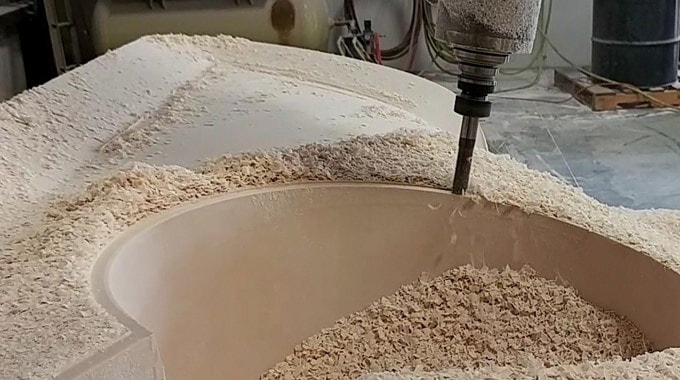

5 axis precision allows positioning and cutting along curved material surfaces with ease.

CNC Router Plastics

    • OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN-ready Ethernet interface.
    • International standard machine code language (G&M), integrates with all industry standard CAD/CAM programming software packages, built-in diagnostics, tool path graphics and more.
    • Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

Computer CNC Router

Applications include but aren’t limited to the automotive, aviation, ship & yacht, chairs, fiberglass, and molded product trimming.



The HSR-V is designed to never quit with best-in-class mechanical and electronic components, including OSAI Open control, Yaskawa drives, THK linear ways, precision ground helical rack and pinion, and precision ball screws.



MPG allows manual axis movements for fine adjustments.

Computerized CNC Router

HSR-V FEATURES GALLERY

  • Grooving Blades & Tooling

    Grooving Blades & Tooling

    Turnkey tooling package included as standard — All required depth control wheels, grooving profiles and main setup blade.

  • Angular Cutting Devices

    Angular Cutting Devices

    Two 0-50 degree angular cutting devices for left and right angles.

  • Rip Cut Position

    Rip Cut Position

    With one lever, the head quickly changes from vertical cross cutting to full length rip cutting mode.

HSR-V CNC ROUTER DETAILS

5 axis CNC router

Click on the schematic to view fullscreen
