enter a new generation of excellence.

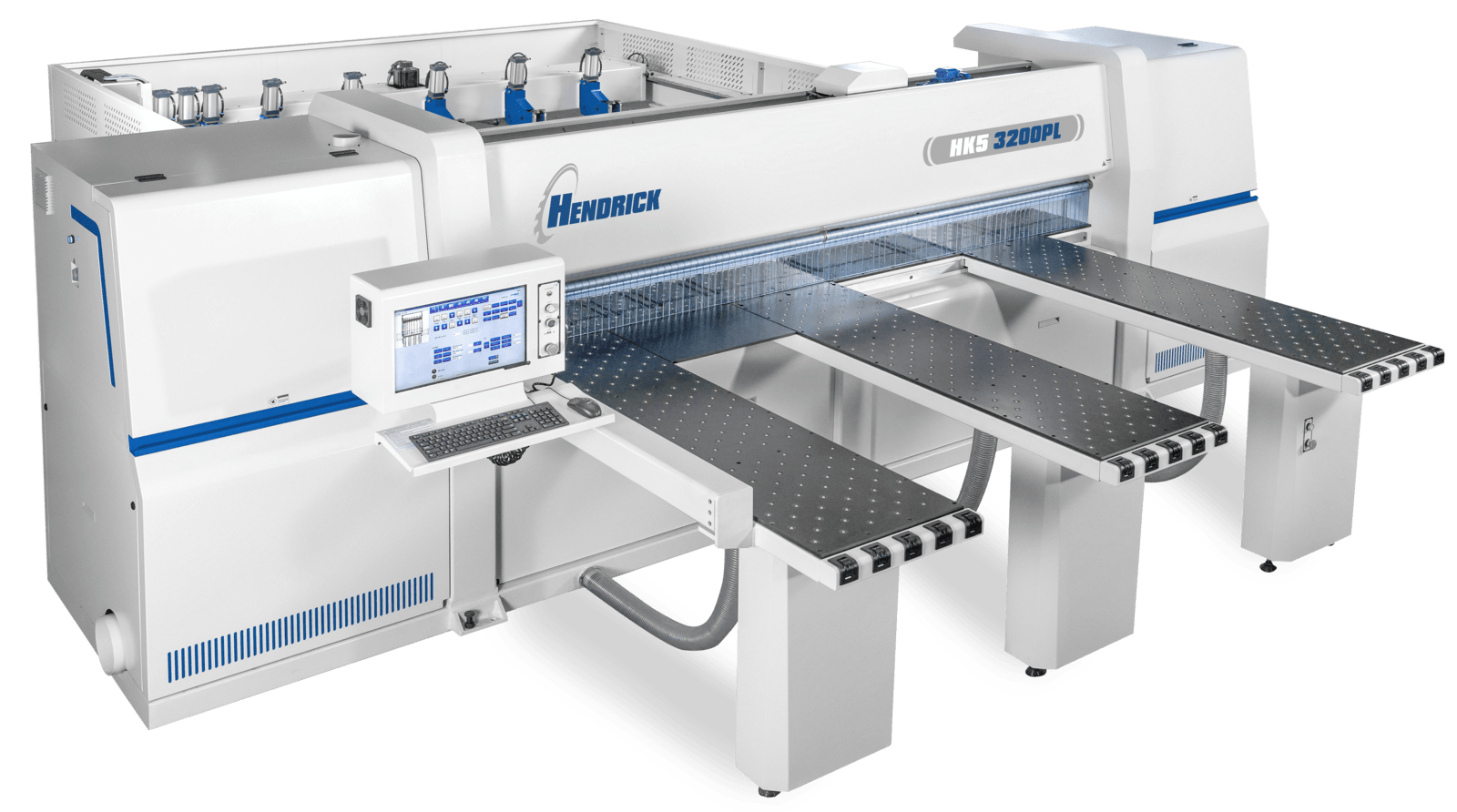

Maximize power, speed, and safety in your plastic fabrication process with the all new HK5 PL Series Horizontal Beam Saw. Experience the difference of a standard 5” depth of cut, powerful 25 HP main blade motor, and independent 2 HP scoring system. The AC servo-controlled saw carriage provides extremely fast blade positioning via its rack & pinion design. With its ease-of-use and hassle-free automation PC controller, you can load, position, cut, and unload faster than ever before. Making cuts and adjusting speed in real-time is quick and easy. Efficiently load materials by using the material grippers and unload materials effortlessly using the large air flotation tables. If you’re looking to enter a new era in your business, the HK5 PL Series will have everything you need to get you there.

THE HK5 PL CUTS INTO

Standard Lengths of Cut: 8′, 10′, and 12′

25 HP Main Blade Motor

Independent 2 HP Scoring System

Replaceable Cut Line

Rack & Pinion Saw Carriage Travel by AC Servo

Variable Saw Carriage & Blade RPM Speed

Fully Automatic Cutting with Easy-To-Use Control Software

50” Wide Solid Table Surface with Gripper Block Option Allows for Cutting of Small Parts

Air Flotation Tables

2kW Servos

Spray Mist Coolant

Thermal Label Printer

Onboard Optimization Software

Main Body Air Flotation

SUPERIOR POWER AND PRECISION.

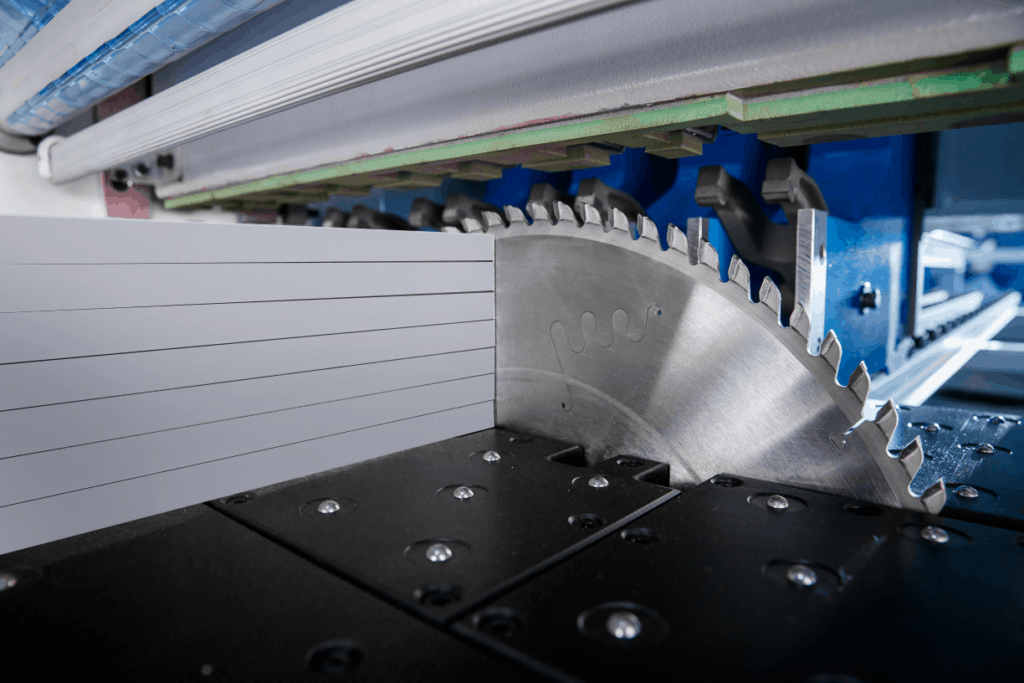

Take your production line to the next level with the HK5’s standard 5 inch depth of cut. A clean and flawless cut guaranteed every time.

Effortlessly load and unload material with the air flotation table tops.

Panel Saw

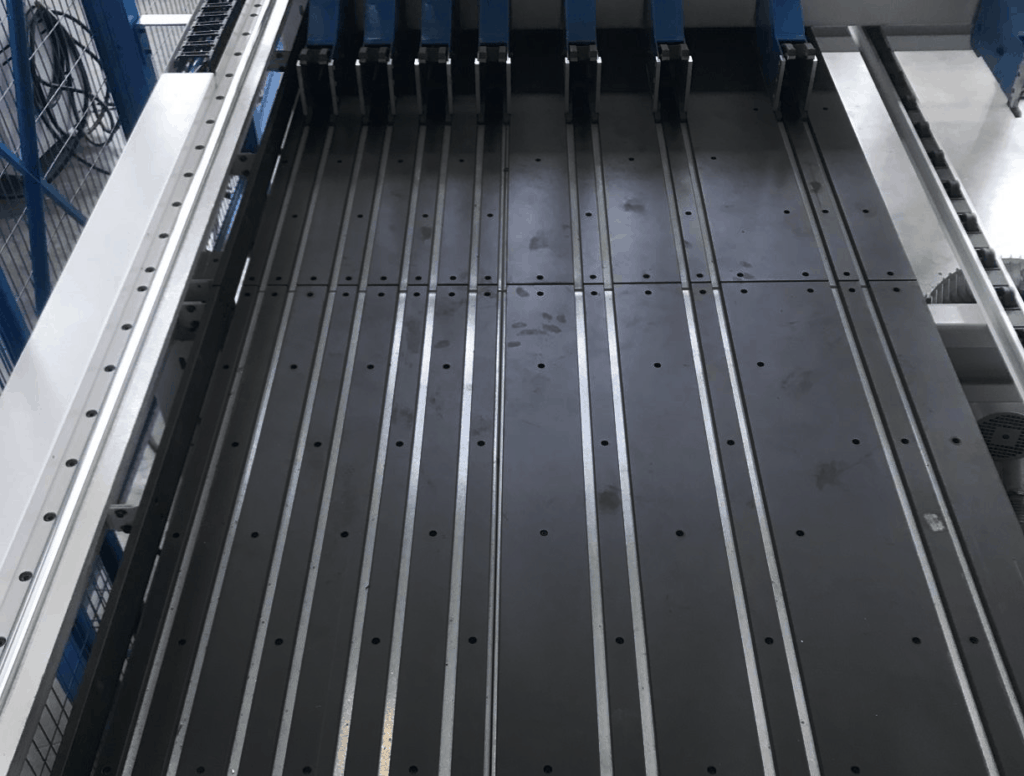

Ensure part accuracy with the solid table design for processing small parts.

EXPERIENCE unmatched excellence.

  • PUSHER BLOCK

    PUSHER BLOCK

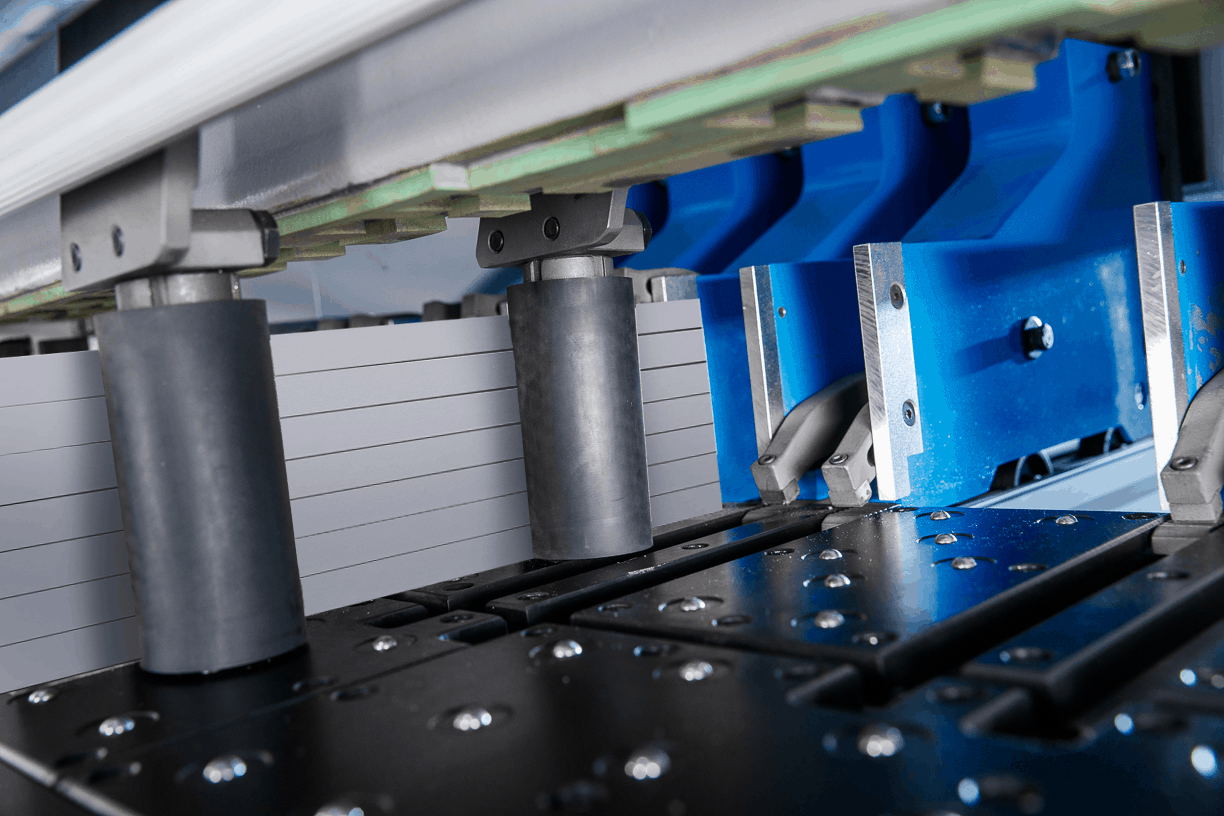

    The pusher block allows you to cut small strips and rod with ease.

  • SIDE ALIGNMENT

    SIDE ALIGNMENT

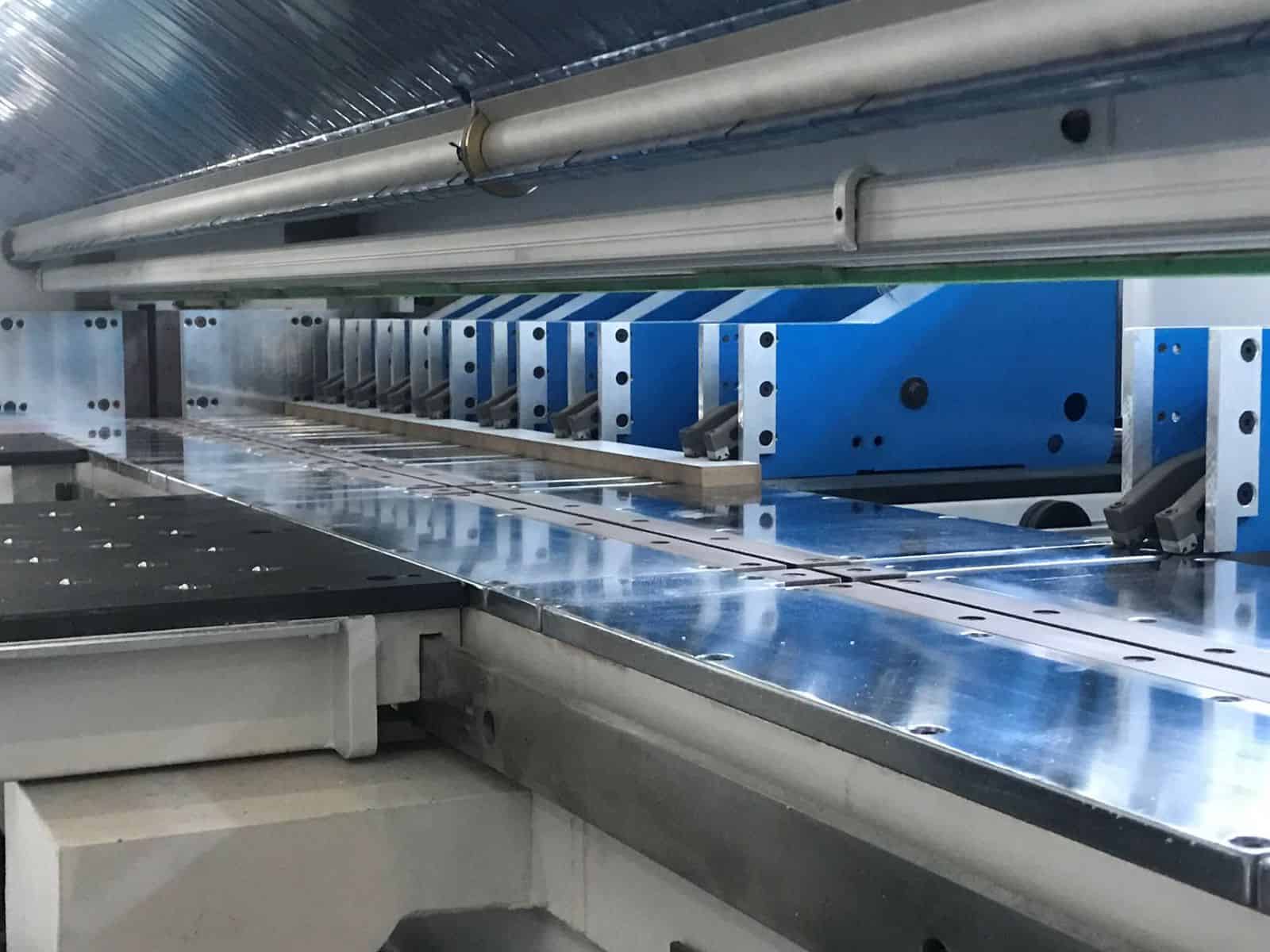

    Ensure complete accuracy with dual side aligners to keep material in place.

  • RACK & PINION CARRIAGE

    RACK & PINION CARRIAGE

    Saw carriage driven by robust rack and pinion system.

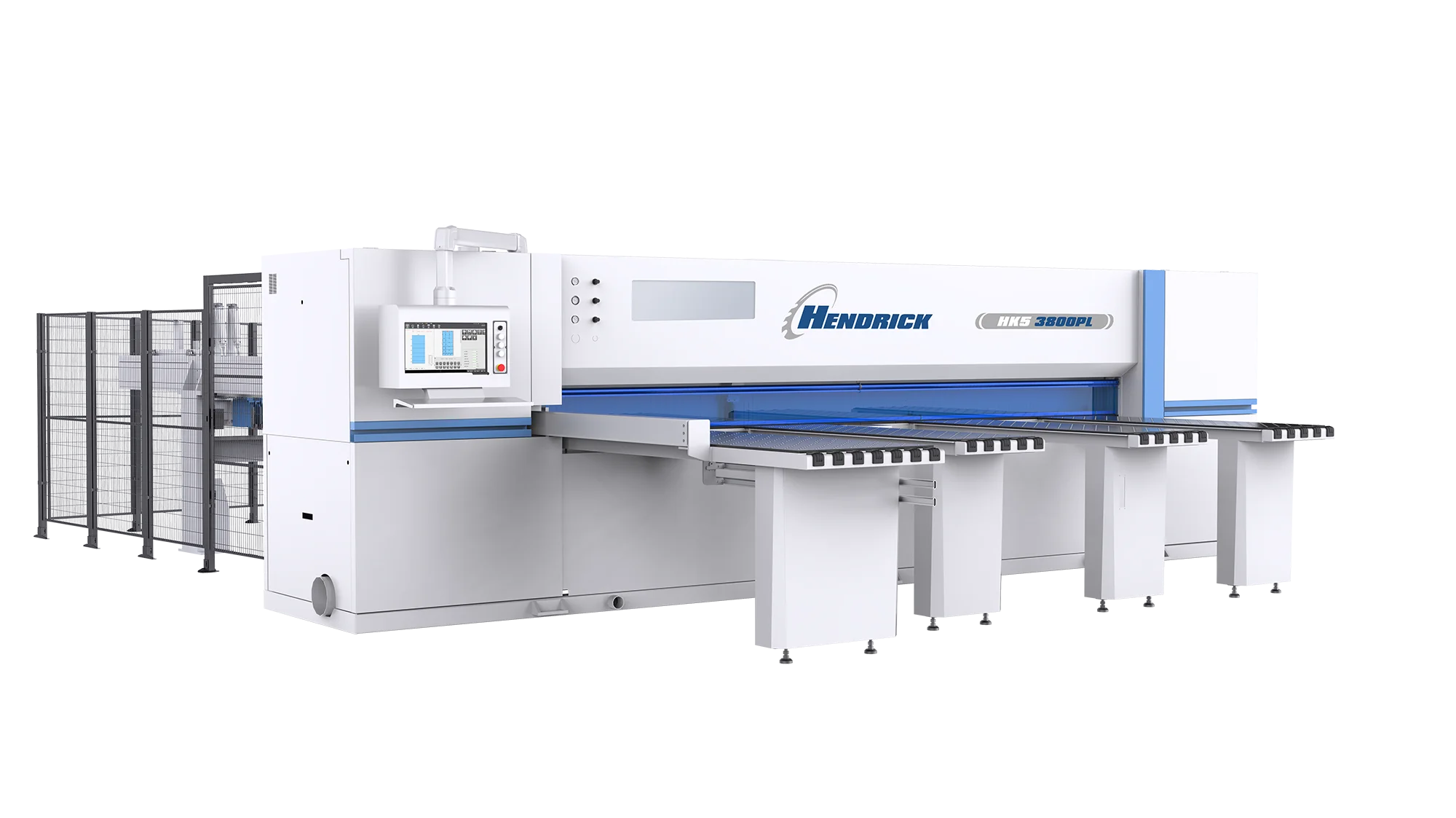

HK5 SERIES BEAM SAW DETAILS

SPECIFICATIONS

  • 8′, 10′ & 12′
  • 8′, 10′ & 12′
  • SPECIFICATIONS

    • 2kW
  • 18.5kW (25HP)
  • SPECIFICATIONS

    • 3600 rpm (60Hz)
  • 18” Diameter
  • The Hendrick panel saw has dramatically increased our efficiency by reducing the critical set-up and production times for the many different jobs we run through the machine every day – Ease of operation, intuitive controls, and reliability make this saw the centerpiece in an operation providing just-in-time customized protective packaging as the critical final link in our diverse customer base’s supply chain
    Rand Whitney
    We have been quiet satisfied with our new Hendrick saw. With the efforts in manufacturing to improve quality, safety, and productivity, this saw has excelled in all areas. We are now able to cut materials we couldn’t cut previously, and we can cut them faster, more accurately, and much more safely.
    Saint Gobain Crystals
