Maximize Power and Productivity

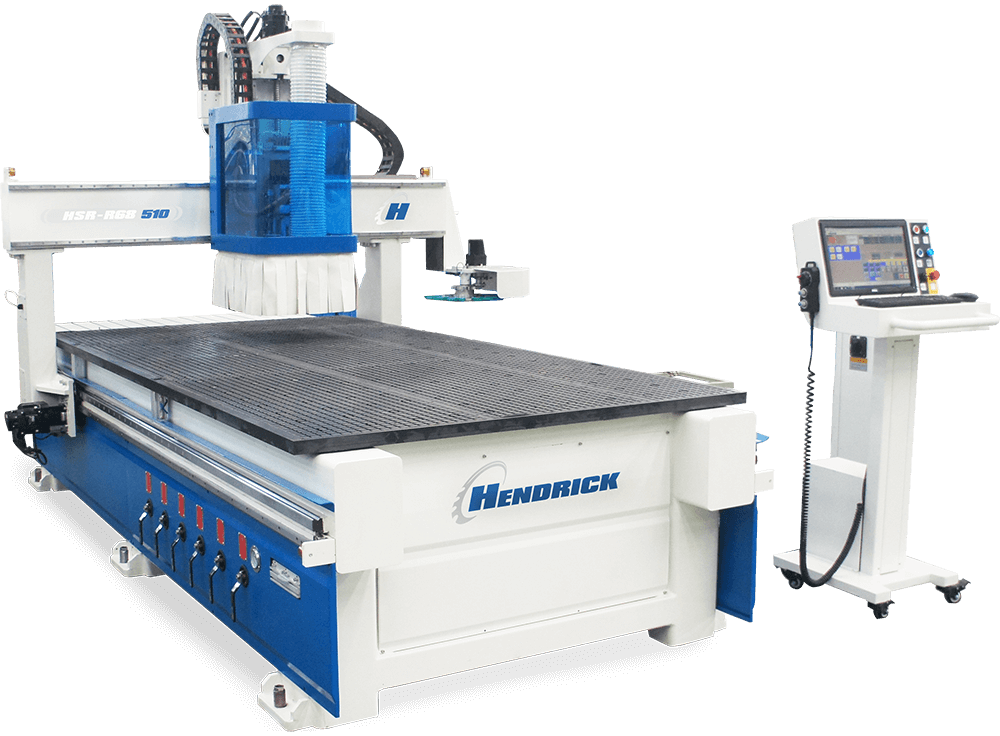

Upgrade your production line with the powerful HSR Series 3-axis CNC router. This incredible machine can handle even the most demanding production requirements thanks to its world-class mechanical and electronic components. This 3-axis CNC router delivers high-speed positioning and cutting without sacrificing the finish quality. It’s compact stationary table moving gantry design will free up floor space in your production area. Each machine comes with a multi-station rotary tool changer or a linear rack tool holder. These powerful 3-axis CNC machines for sale are ideal for all your manufacturing needs. Versatility, compact design, and 24/7 uptime – get all this and more with the HSR Series. Contact one of our trained professionals today to learn more.

THE HSR SERIES ROUTES

Multi Zone Vacuum Table

Pop-Up Location Pins

Becker Vacuum Pump

HSD HSK63-F High Frequency Spindle

Automatic Tool Changer (Rack or Rotary)

OSAI Open CNC Controller

Automatic Tool Length Measurement

HSD ISO30 High Frequency Spindle

Spray Mist Coolant

Multi Boring Unit with 9 Vertical, 6 Horizontal Independently Programmable Boring Spindles on 32mm centers & 1 Saw Head

High Value Automation

    • OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN-ready Ethernet interface.
    • International standard machine code language (G&M), all industry standard CAD/CAM programming software packages, built-in diagnostics, tool path graphics and more.
    • Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

CNC Router

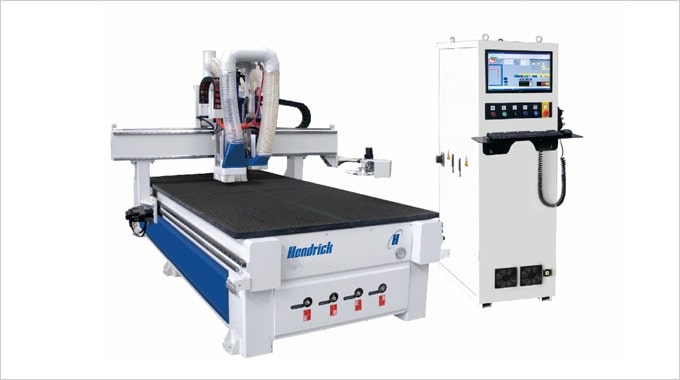

High precision is ensured with a stationary table and a moving gantry.

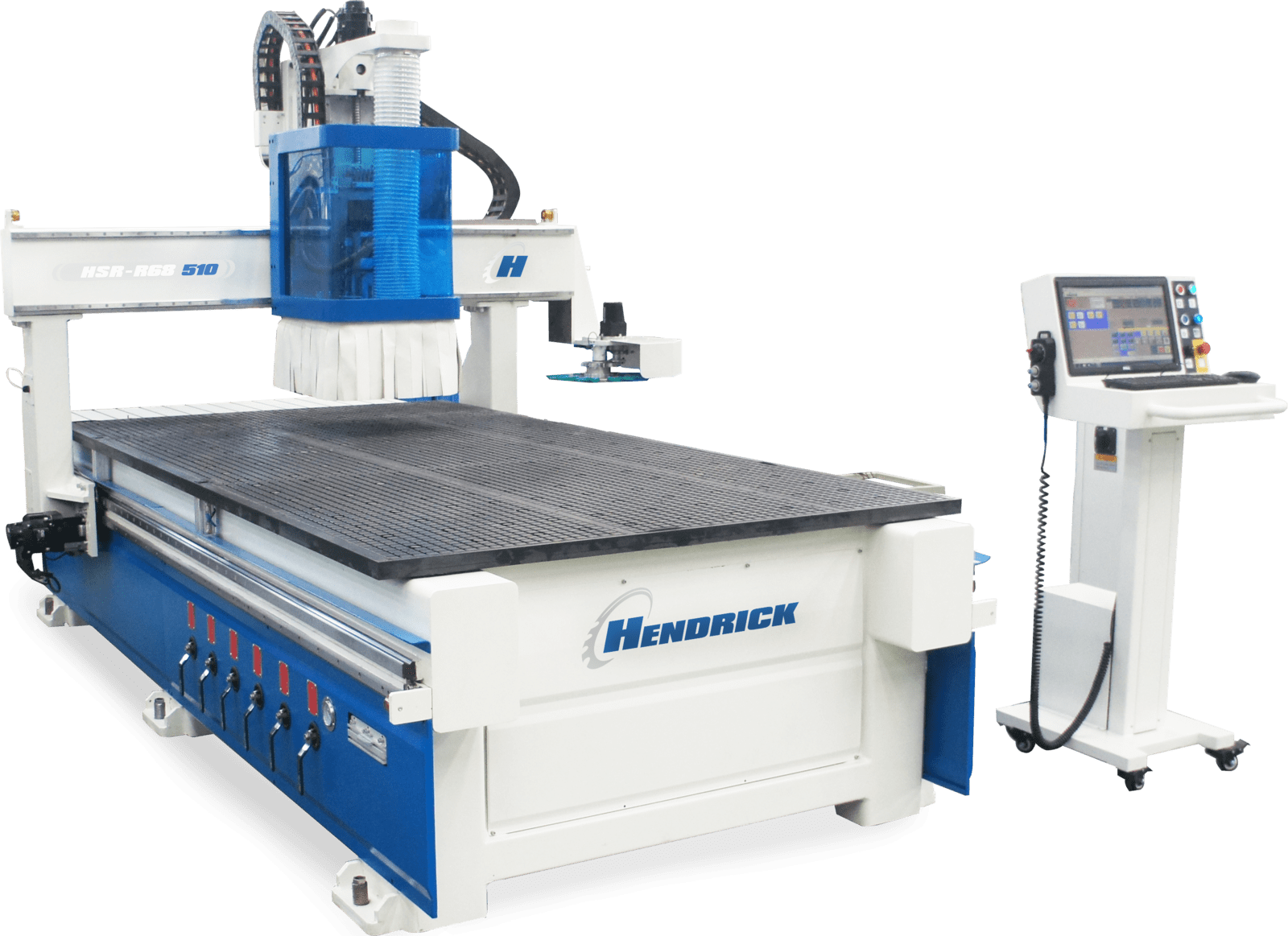

3 Axis CNC Router

Eliminate depth cutting errors. All the operator has to do is insert the cutting tool into the tool holder, and the machine identifies the tool depth (Z) and enters the value into its library.

CNC Router

MPG allows manual axis movements for fine adjustments.

Computer CNC Rourter

HSR FEATURES GALLERY

  • Safety in Style

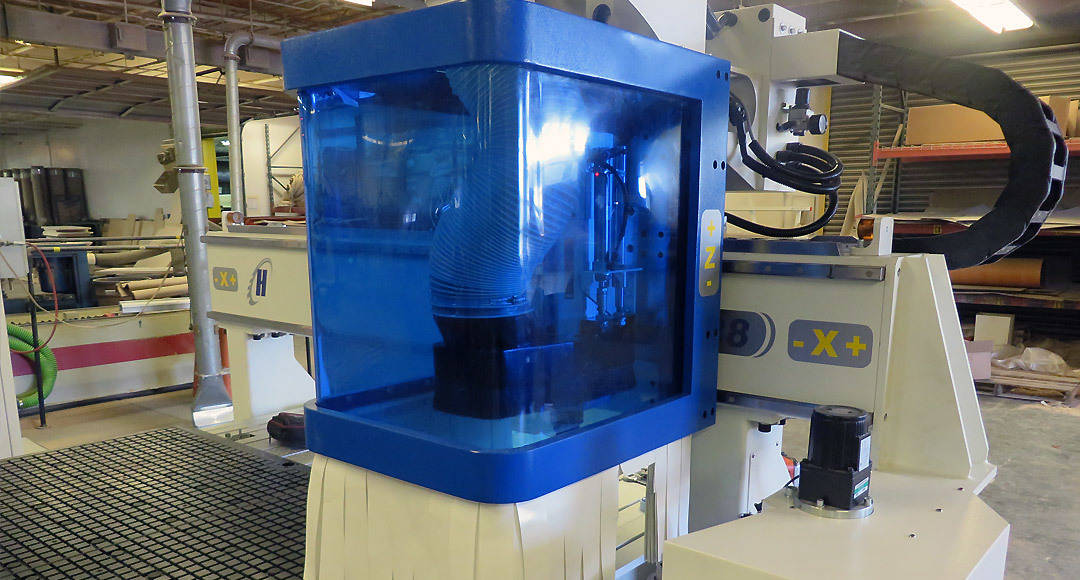

    Safety in Style

    Our fully enclosed HSD spindle keeps your employees safe while allowing them to have visual control of the machine in operation.

  • Vacuum Zones

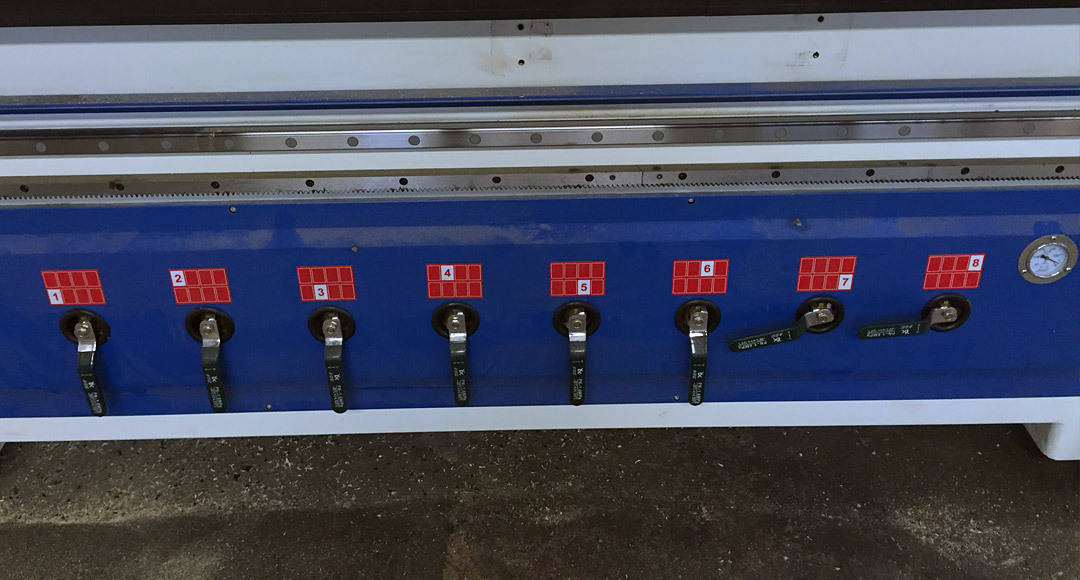

    Vacuum Zones

    Multiple vacuum zones allow for flexibility with machining small to large parts, while guaranteeing maximum efficiency from the Becker vacuum pump system.

  • Helical Rack and Pinion

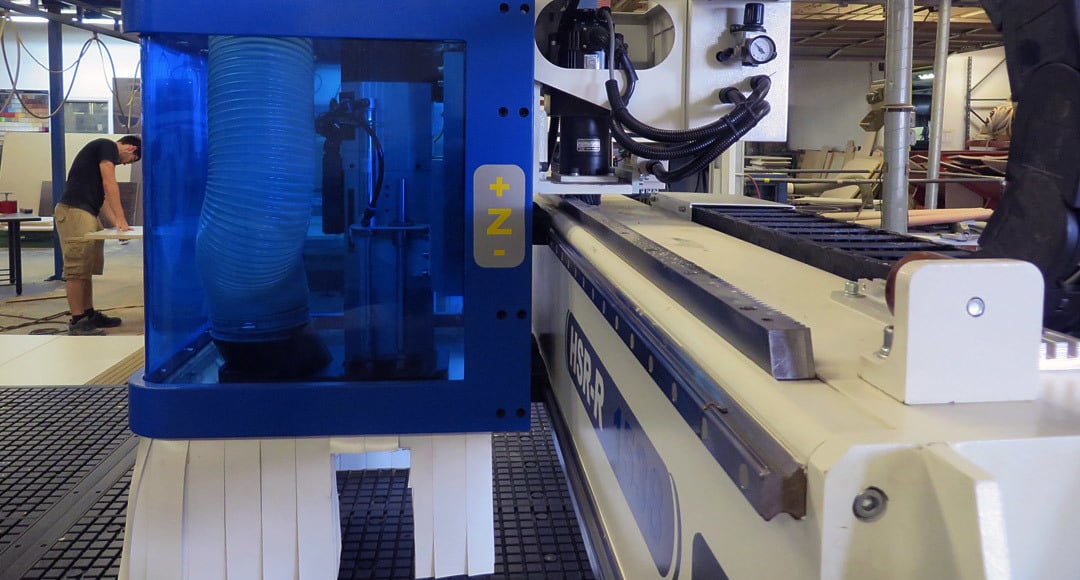

    Helical Rack and Pinion

    Helical rack and pinion coupled with linear ways on all axes provide for rapid speeds and incredibly precise machining. This configuration is CNC machining at its best.

  • Becker Vacuum Pump

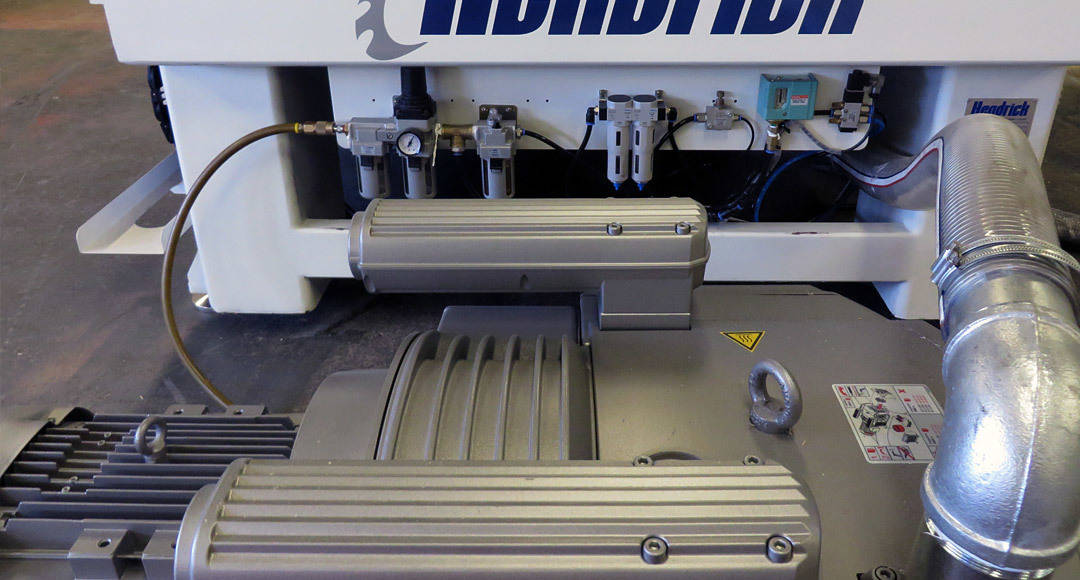

    Becker Vacuum Pump

    All Hendrick CNC routers are supplied with Becker’s VTLF rotary vane pump oil-less vacuum pumps. These systems provide reliable and superior performance with minimal noise and very low maintenance.

HSR CNC ROUTER DETAILS

SPECIFICATIONS

  • Precision Ground Helical Rack and Pinion Drive
  • Precision Ball Screw
    THK LM Linear Guide Ways on All Axis
  • SPECIFICATIONS

    • 4′ x 8′ (1300mm x 2500mm)
      5′ x 10′ (1600mm x 3100mm)
      6.5′ x 12′ (2100mm x 4020mm)
  • 16’ (5000mm), 20’ (6000mm)
  • 8″ (200mm) Custom Z Axis Travel Available
  • SPECIFICATIONS

    • 3,200″ per min (80m/min)
  • Up to 800″ per min (20m/min)
  • CUSTOM CONFIGURATIONS AVAILABLE

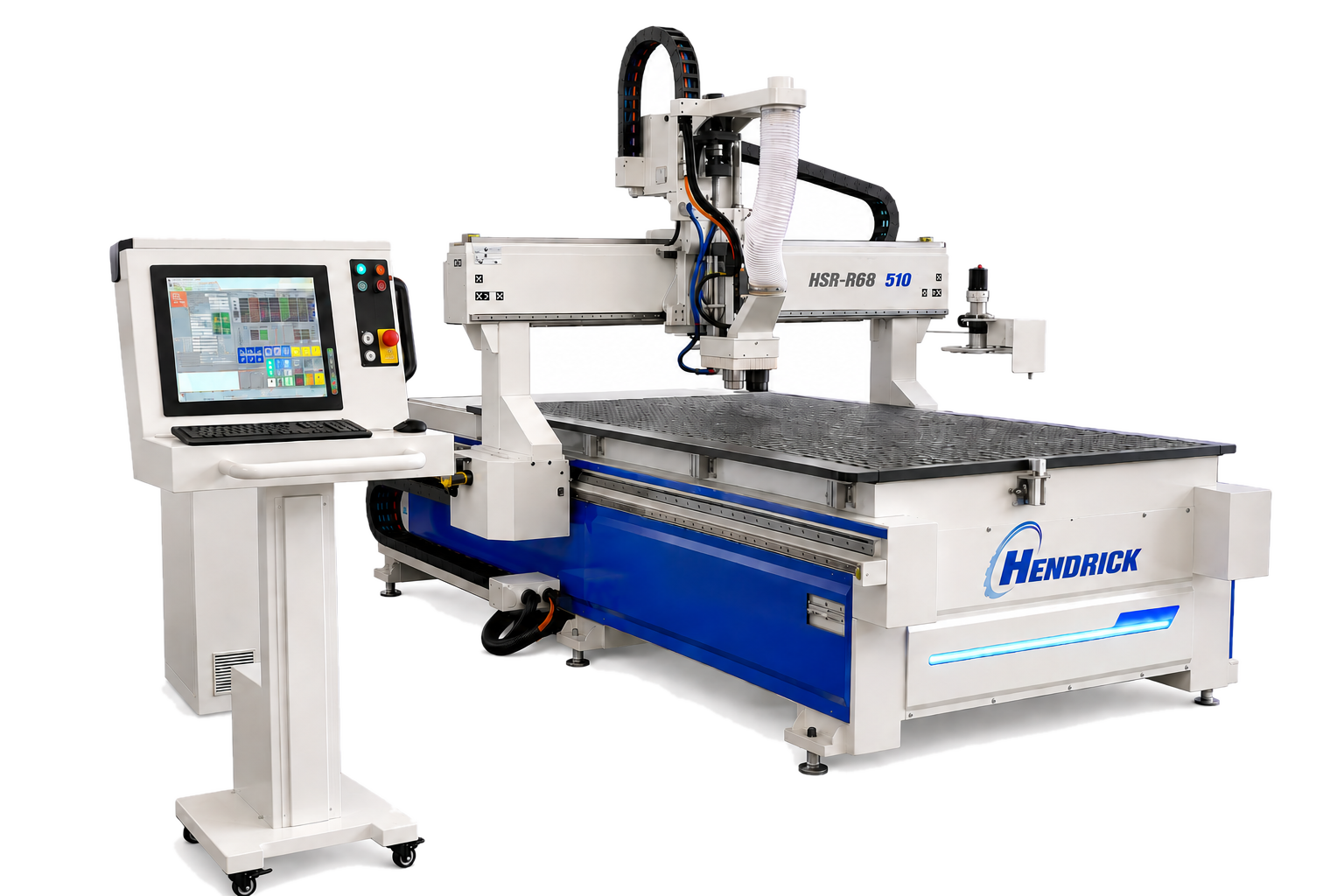

    3 Axis CNC Router

    Click on the schematic to view fullscreen
