SUPERIOR VALUE, SUPERIOR VOLUME.

The HK5 RL Horizontal Beam Saw offers high output machining at an exceptional value. Configured with a rear lifting table and closed loop AC servo system, the HK5 RL allows you to process materials faster and easier than ever before. The HK5 RL comes standard with a 5” cut depth and 2 separate blades for scoring and cutting, drastically increasing ease of operation and productivity. If you are looking for an affordable machine that can meet the demands of your high output production line, the HK5 RL Horizontal Beam Saw is the precise and efficient solution for your business.

THE HK5 RL CUTS INTO

Standard Lengths of Cut: 8′, 10′ & 12′

5” Depth of Cut

18.5kw (25HP) Main Blade Motor

Air Floatation Tables

Onboard Optimization Software

PC Machine Controller

Variable Saw Carriage Speed with High Speed Return

Dual Automatic Side Alignment


Separate Scoring Blade for Chip Free Cutting



Twin Pusher Gripper System

Thermal Label Printer

OUR HIGHEST OUTPUT MACHINE AVAILABLE.

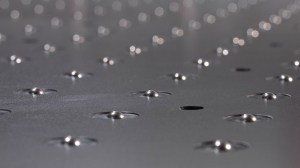

Load and unload material effortlessly with air floatation table tops.

panel saw

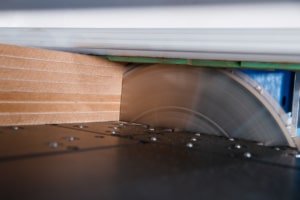

Solid pneumatic hold down bar saw blade kerf line for material support on both sides of saw blade.

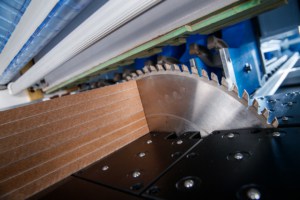

Take your production line to the next level with the HK5’s standard 5 inch depth of cut. A clean and flawless cut guaranteed every time.

HK5 RL FEATURES

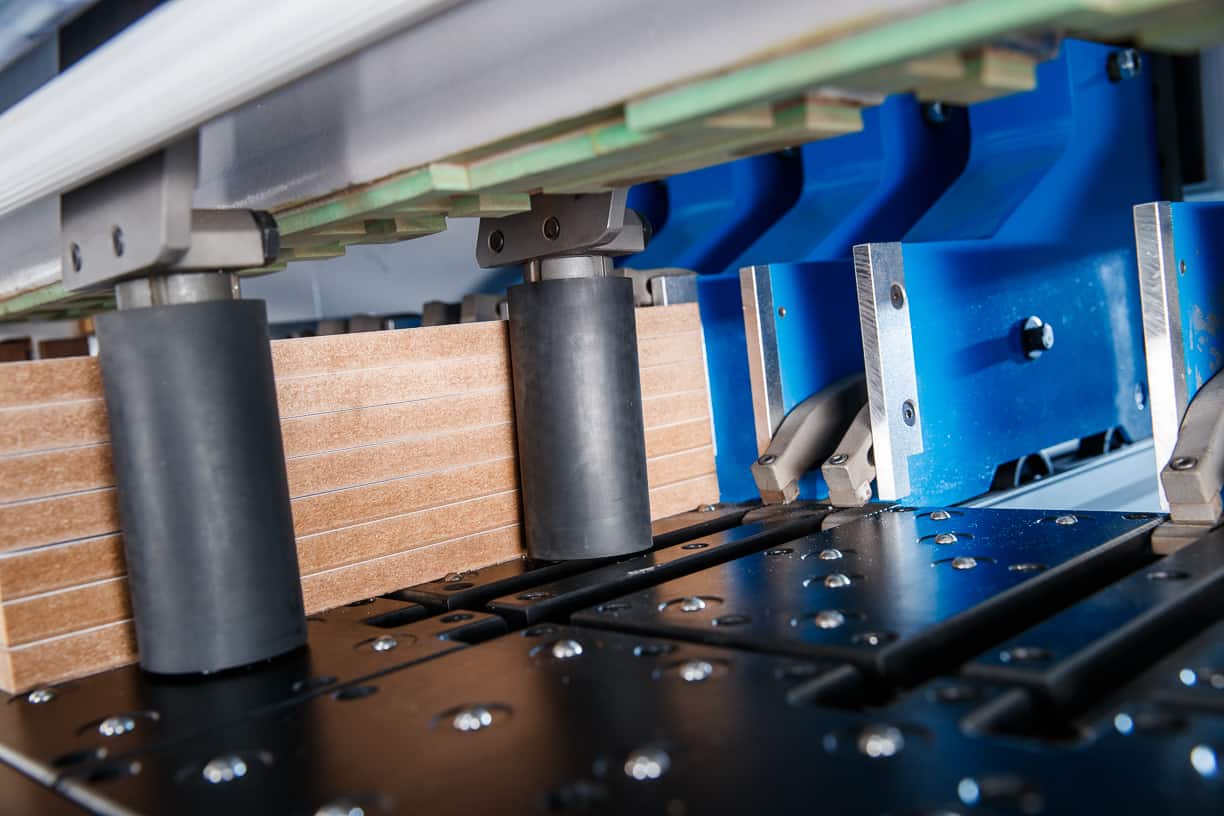

  • SIDE ALIGNMENT

    SIDE ALIGNMENT

    Ensure complete accuracy with dual side aligners to keep material in place.

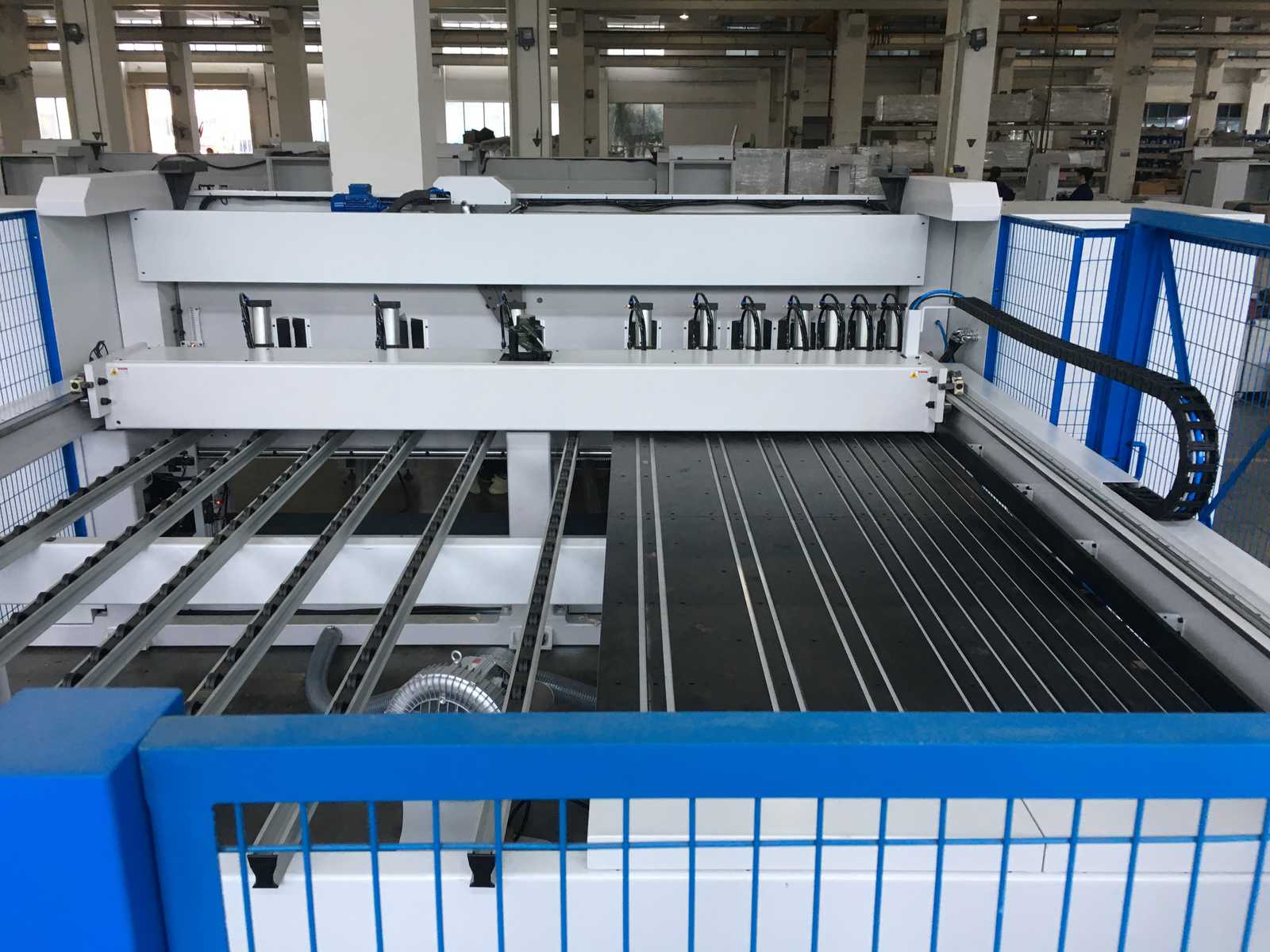

  • REAR LIFT TABLE

    REAR LIFT TABLE

    Increase efficiency and ease of operation with the HK5 RL's rear lift table.

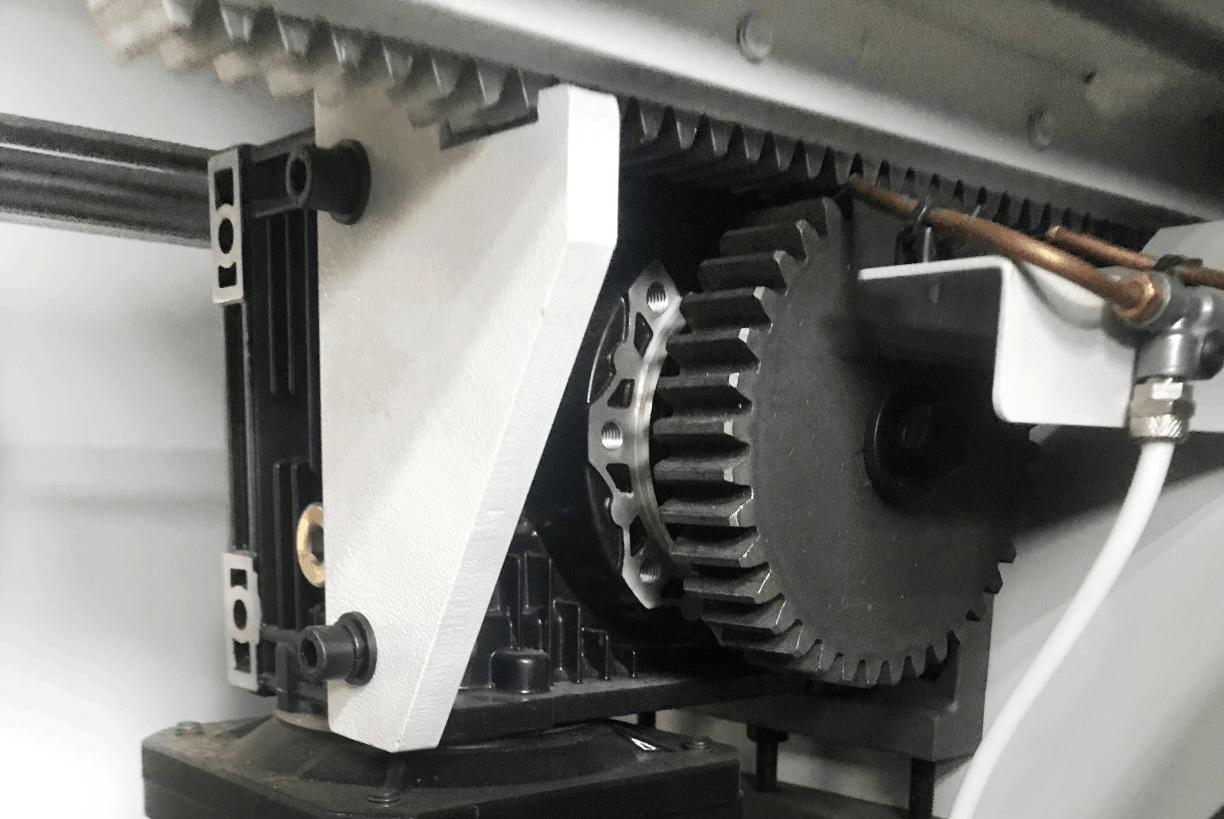

  • RACK & PINION CARRIAGE

    RACK & PINION CARRIAGE

    Saw carriage driven by robust rack and pinion system.

HK5 RL  DETAILS

SPECIFICATIONS

  • 8′, 10′ & 12′
  • 8′, 10′ & 12′
  • SPECIFICATIONS

    • 16kW (21HP)
  • 18.5kW (25HP)
  • SPECIFICATIONS

    • 3600 rpm (60Hz)
  • 18” Diameter
