Entry-Level Price, Top of the Line Machining

Price isn’t a barrier to superior performance with the HLD Series. World class components enable small production teams to produce excellent finish and reliability consistent with much higher-priced CNC routers. These single head machines take up minimal floor space, using a stationary table moving gantry design with standard table sizes of 4’x8’, 5’x10’, 6’x12’ & optional tables of 16’ & even 20’. The HLD series is perfect for the sign industry, and can also be used for solid wood furniture, cabinets, entry doors, windows, office furniture, stereo boxes, acoustic instruments, insulation panels, plastics, and carbon mixed compounds. Diversify your output with the ability to process acrylic, PVC, artificial stone, organic glass, and soft metals like aluminum and copper. Now anyone can upgrade to a quality entry level CNC router, thanks to the HLD Series.

THE HLD SERIES ROUTES

Multi Zone Vacuum Table

Pop-Up Location Pins

Becker Vacuum Pump

12HP HSD ISO30 High Frequency Spindle

Linear Rack Style Tool Changer

OSAI Open CNC Controller

Delta / Panasonic Drives

HSK63-F High Frequency Spindle

Becker VTLF Vacuum Pumps

Vertical Boring Head

Better Value, Extraordinary Finish

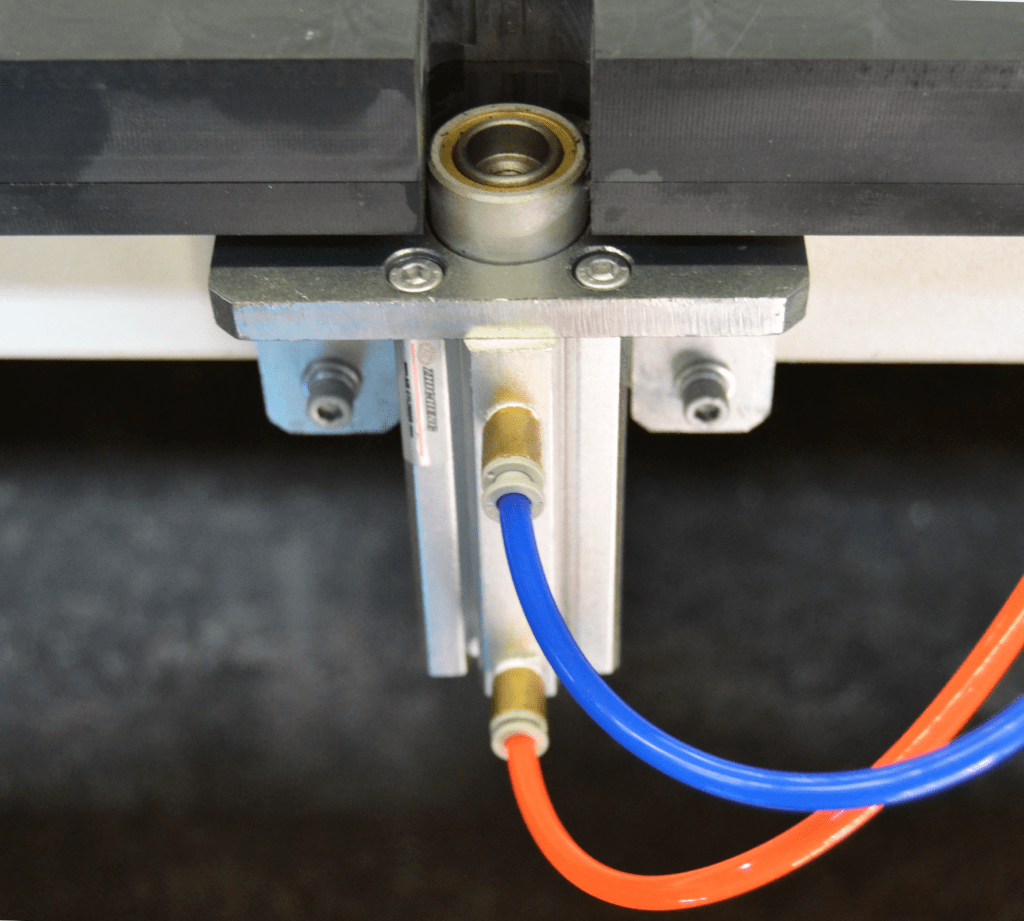

Achieve exact locating of boards and material with automatic adjustable pop-up stops – one stop on the Y-axis, and two stops on the X-axis.

Hold your materials down for accurate machining with a plenum style vacuum table. It has a heavy-duty PVC table surface over steel structure using an industry standard grid pattern to accept many 3rd party vacuum accessories.

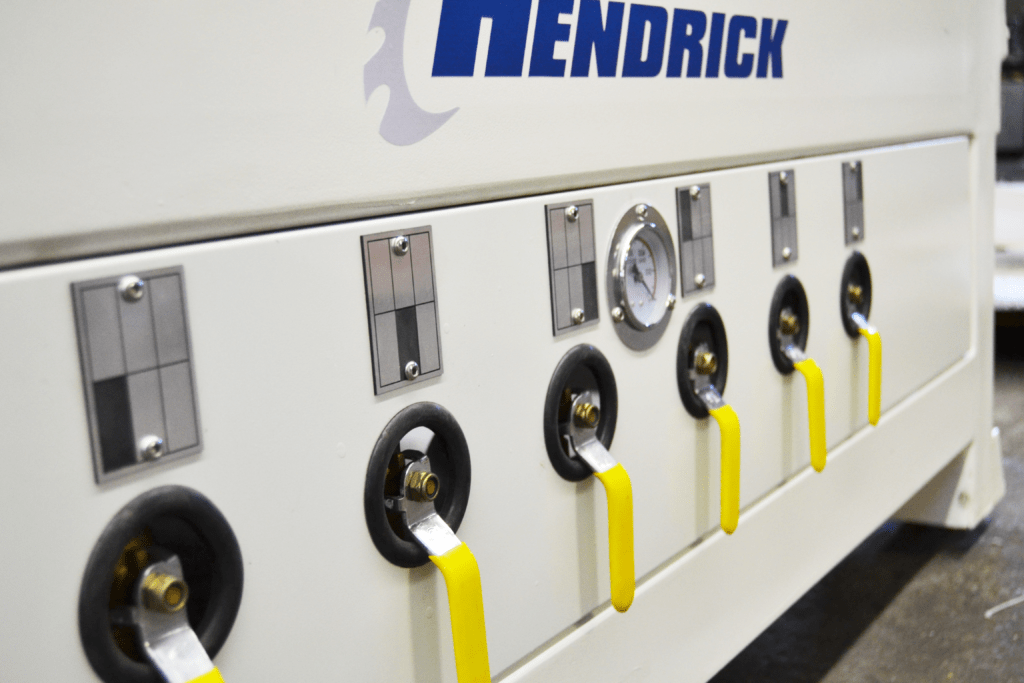

Achieve accurate zoning when cutting small parts thanks to multiple independently-operated manual vacuum zone.

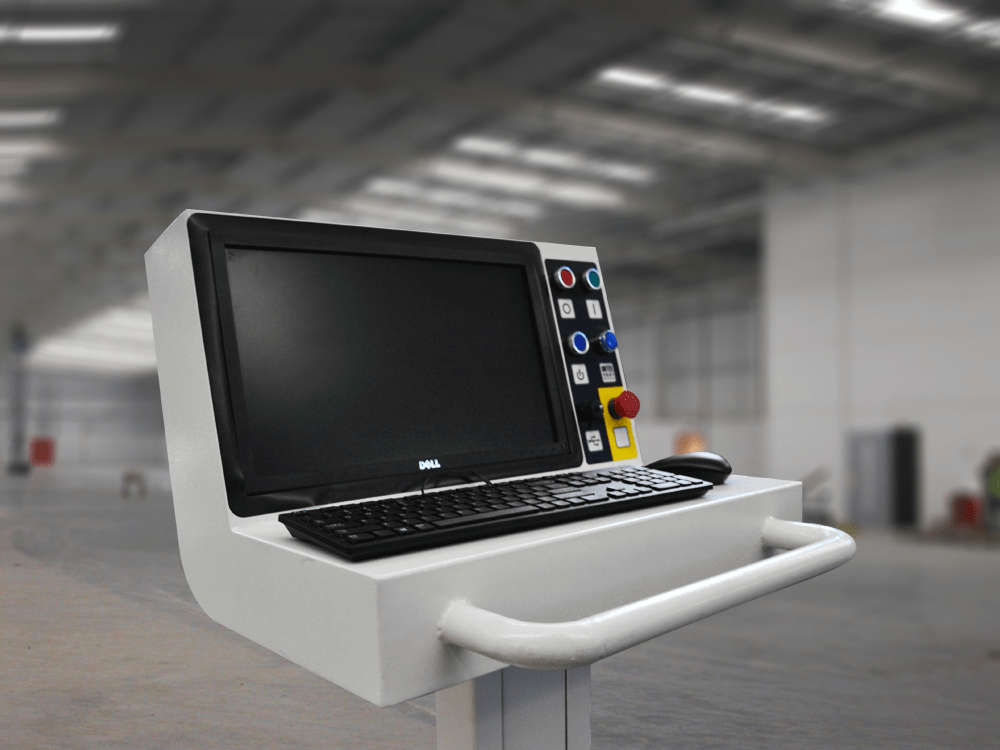

    • OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN-ready Ethernet interface.
    • International standard machine code language (G&M), all industry standard CAD/CAM programming software packages, built-in diagnostics, tool path graphics and more.

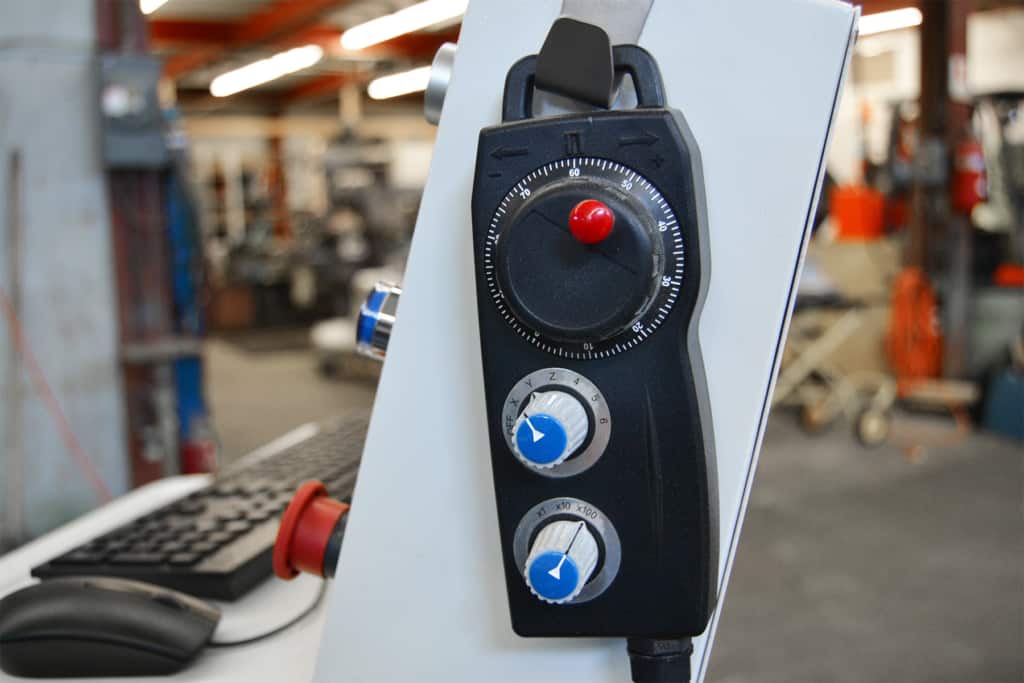

    • Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

CNC Router

MPG allows manual axis movements for fine adjustments.

Computer CNC Router

HLD FEATURES GALLERY

  • Grooving Blades & Tooling

    Grooving Blades & Tooling

    Turnkey tooling package included as standard — All required depth control wheels, grooving profiles and main setup blade.

  • Angular Cutting Devices

    Angular Cutting Devices

    Two 0-50 degree angular cutting devices for left and right angles.

  • Rip Cut Position

    Rip Cut Position

    With one lever, the head quickly changes from vertical cross cutting to full length rip cutting mode.

HLD DETAILS

SPECIFICATIONS

  • Precision Ground Helical Rack and Pinion Drive
  • Precision Ball Screw
    THK LM Linear Guide Ways on All Axis
  • SPECIFICATIONS

    • 4′ x 8′ (1230mm x 2500mm)
      5′ x 10′ (1560mm x 3100mm)
      6.5′ x 12′ (2050mm x 4020mm)
  • 16′ (5000mm), 20′ (6000mm)
  • 8″ (200mm) or 12″ (300mm)
  • SPECIFICATIONS

    • 1,600″ per min (40m/min)
  • Up to 600″ per min (15m/min)
  • 3 Axis Entry level CNC router by Hendrick Manufacturing

    Click on the schematic to view fullscreen

    Hendrick Manufacturing

    ACCESSORIES

    From bits and blades to notching machines, complement your production line with official high-grade accessories.

    Hendrick Manufacturing dust collection

    SERVICE

    Expert service technicians are positioned across the country to help keep your investment in excellent condition.

    Hendrick Manufacturing

    SUPPORT

    Minimize your machine downtime with our support staff via phone or through remote diagnostics.
