WHERE CNC MEETS VALUE

The CH CNC Beam Saw Series offers high output machining at an exceptional value. This versatile saw comes standard with an intuitive HMI touchscreen controller or optional Windows PC controller.

Automate your sheet, rod, and tube processing with reliable accuracy. The CH Beam Saw Series incorporates a closed loop AC servo system with a full-length magnetic scale for repeatable accuracy.

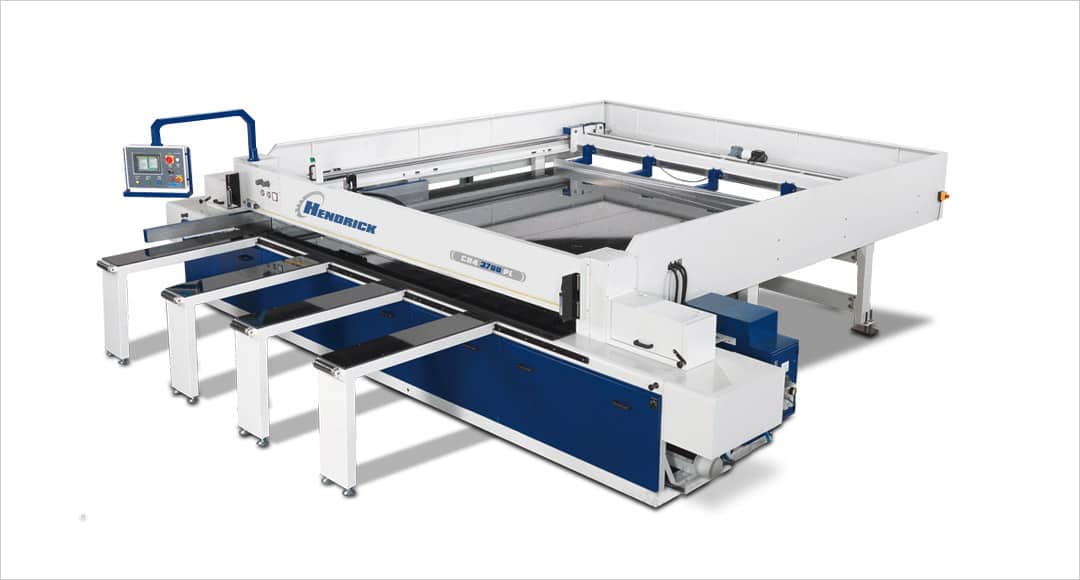

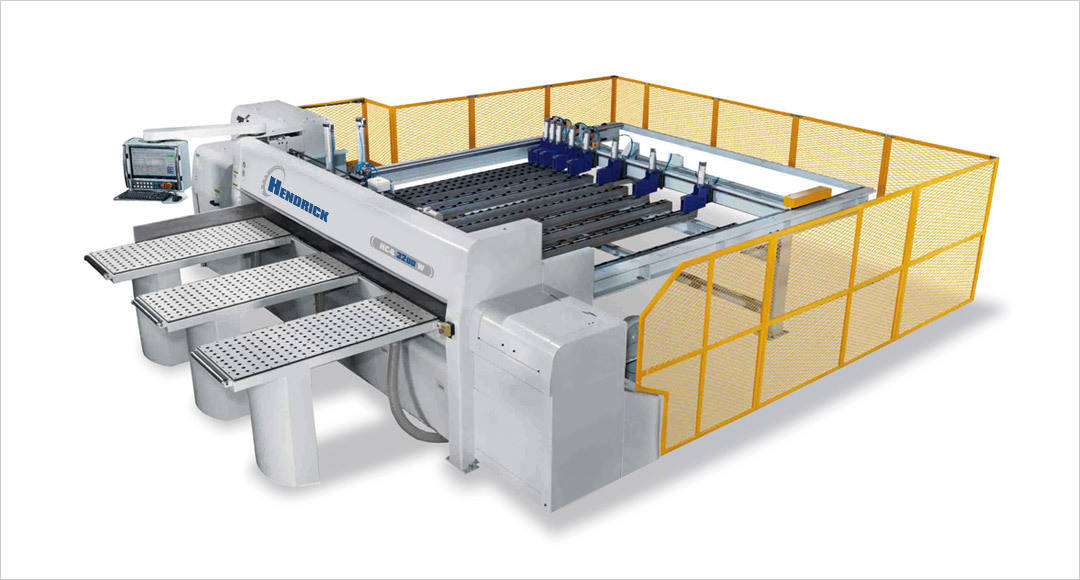

The CH Beam Saw Series comes standard with a 4” cut depth to meet your production needs. This series can be configured with a roller wheel back table layout for woodworking or a solid phenolic table for plastics and corrugated applications, as well as a ball screw pusher for side loading. Choose Hendrick with confidence knowing we offer world-class equipment, service, and support.

THE CH CUTS INTO

4″ Maximum Depth of Cut with Main Saw Blade

Standard Lengths of Cut: 5′, 8′, 10′ & 12’

18 HP (4″ Depth of Cut) Main Blade Motor

Variable Saw Carriage Speed with High Speed Return

Separate Scoring Blade for Chip Free Cutting

Spray Mist Blade Coolant

Manual or Fully Automatic Cutting with Easy-To-Use Programmable Controller

PC Machine Controller with On Board Optimization Software

25 HP Main Blade Motor

Automatic Side Alignment Device

Air Floatation Tables

Custom In-Feed Table Sizes

CH Beam Saw Machine Components

Load and unload material easily with optional air floatation table tops.

floatation

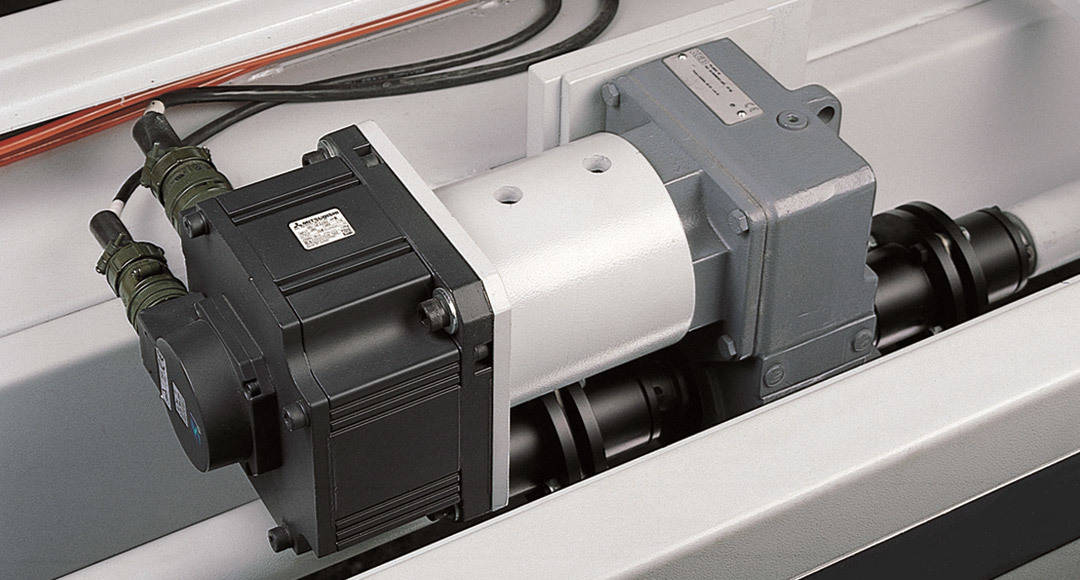

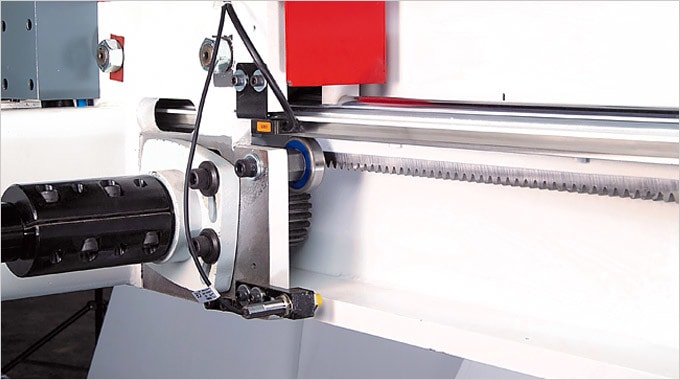

Ensure accurate material positioning and indexing between cuts with an AC closed loop servo drive system working with a full length of travel magnetic encoder.

partaccuracy

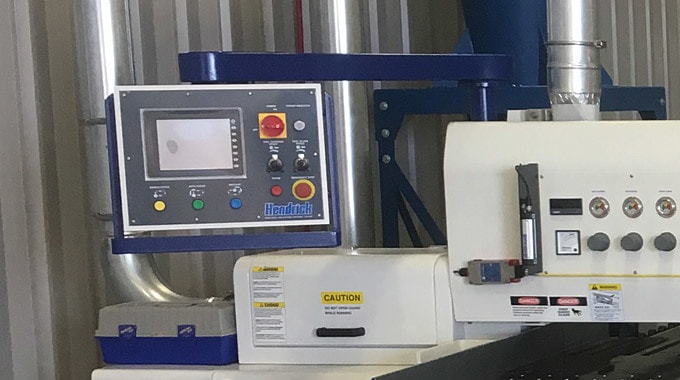

Improve your automation and your troubleshooting with an intuitive HMI touchscreen controller and on screen diagnostics. Optimize production with up to 250 programmable sets with 12 different part sizes per set and up to 99 repetitions for each sheet size.

controllers

    • IPC controller running Windows 7 with a LAN interface, CD ROM, solid state hard drive storage (SSD) and high speed USB-II ports.
    • 19” full color flat screen with animated cut pattern graphics.
    • On-board Material Optimization Software to optimize material waste. Provides plan-to-execution from optimization mode.
    • On-board diagnostics show the status of all machine I/O devices to minimize downtime. Diagnostics also provide “how to” solutions that point to problems and provide corrective actions.

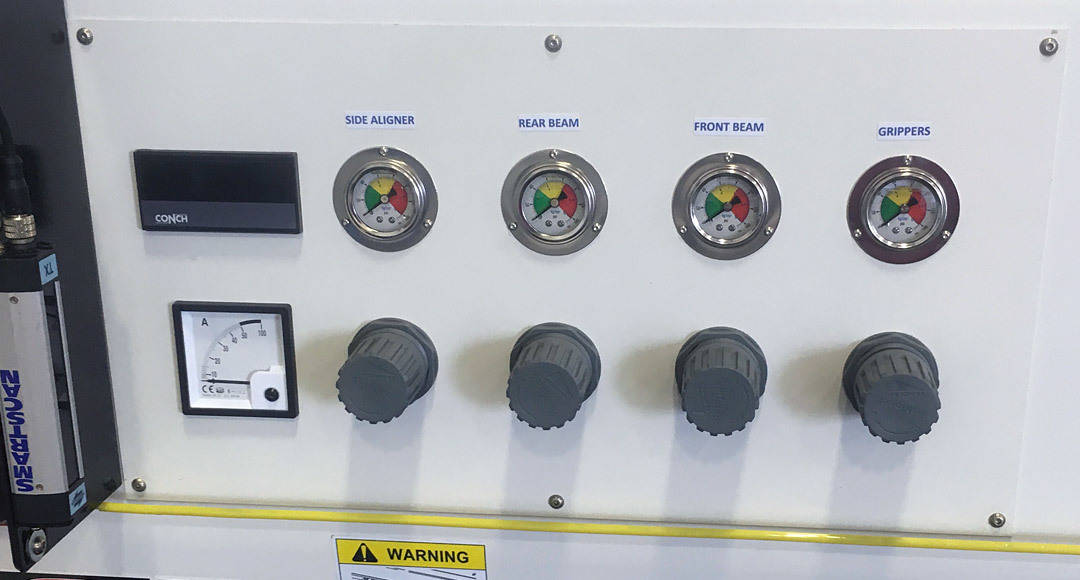

    • Ammeter on front panel to monitor saw blade load.

remotediagnostics

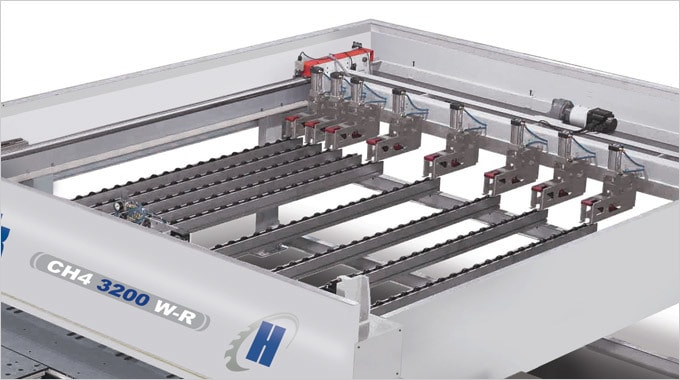

    • Increase speed and ease of operation with a gripper pusher fence with roller wheels allowing heavy materials and stacked sheets to automatically be loaded.
    • They also allow for faster cycling speeds, holding material firm for both cutting and indexing. Cut both large and small parts while indexing with a solid material indexing pusher plate.

support

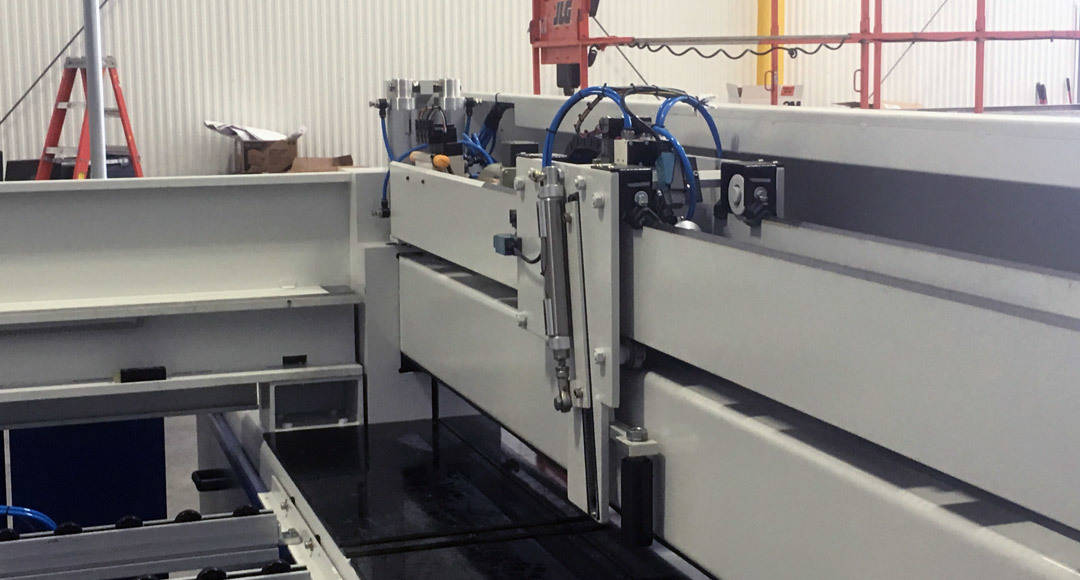

CH FEATURES GALLERY

CH SERIES BEAM SAW DETAILS

SPECIFICATIONS

  • 5′, 8′, 10’& 12′
  • 5′, 8′, 10 & 12′
  • CH4: 4″
    CH6: 6”
  • SPECIFICATIONS

    • 1200”/min
  • 18/25 HP – Optional 30 HP
  • 1200”/min
  • SPECIFICATIONS

    • 3600 rpm (60 Hz)-Optional Variable RPM by AC Inverter
  • CH4:  16″ Diameter CH6:  20” Diameter
  • Horizontal Panel Saw
