Go from Cutting to Grooving in Seconds

Reduce production time and man hours with the only 2-in-1 vertical panel saw that can cut and groove. The VSA ACM Duo is loaded with convenient features including a single switch activation to go from cutting to grooving in seconds, integrated dust collection assist, and fully adjustable digital readout scales. Even with one person operating the machine, there’s no loss of precision depth control for ACM panel bending. With the pull of a lever, this vertical panel saw can also switch from vertical crosscut to horizontal rip-cut. These vertical panel saws require no setup or fixturing and feature circular grooving blades that are 5x faster and more accurate than CNC routers. Cut through aluminum composite material, wood, plastics, melamine, and most importantly, expenses. The VSA is no compromise—it’s a fully featured panel saw and groover in one compact footprint. Contact our skilled team of professionals to learn more.

THE VSA ACM DUO CUTS INTO

5HP TEFC Main Blade Motor

1.5″ Maximum Depth of Cut with Main Saw Blade

One-Piece, Free-Standing, Fully Welded Tubular Steel Machine Frame

Fully Integrated Dust Collection Assist System

Precision Steel Wheel Bottom Material Supports

Center Material Support Shelf with Small Part Support Allows Operator to Stand Erect While Cutting Smaller Parts

Two 0-50 Degree Angular Cutting Devices for Left and Right Angles

Fully Adjustable Digital Readout Vertical & Horizontal Measurement Systems in Both Inch & Metric

Rugged and Easy to Adjust Material Stops

Easy Rotate Quick Change Saw Head for Vertical & Horizontal Cutting

One Set Panel Positioning Allows Panel to Lie at Rest for Both Cross & Rip Cutting

Floating Head Material Hold-Down Securely Holds Panel on Both Sides of Saw Blades While Enhancing Dust Collection and Safety

Meet the 2-in-1 Advantage

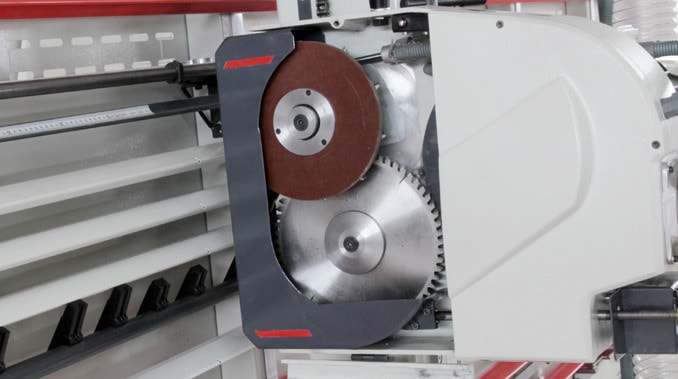

Free up floor space while saving time and money with this hybrid machine. Change from cutting to grooving with the flip of a switch. Your ACM panel remains stationary during both, maximizing accuracy while minimizing production time and material handling. You don’t even need to use a CNC or hand router.

vertical panel saw and groover

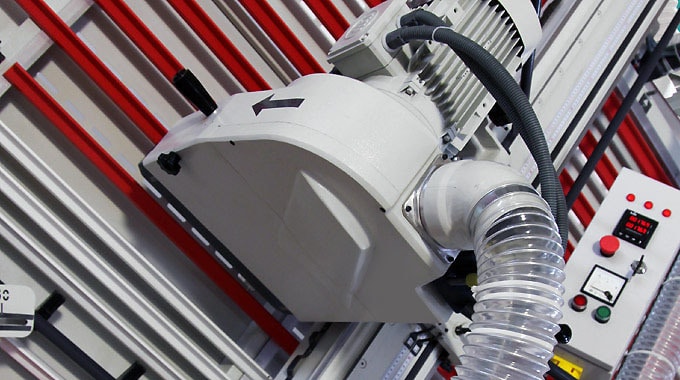

Save time with one-man dual operation, using circular grooving blades which are more than 5X faster than CNC routing. Save even more man-hours with the Duo’s powerful built-in dust extraction, and eliminate potential scratching on ACM panels’ finish.

vertical panel saw and groover

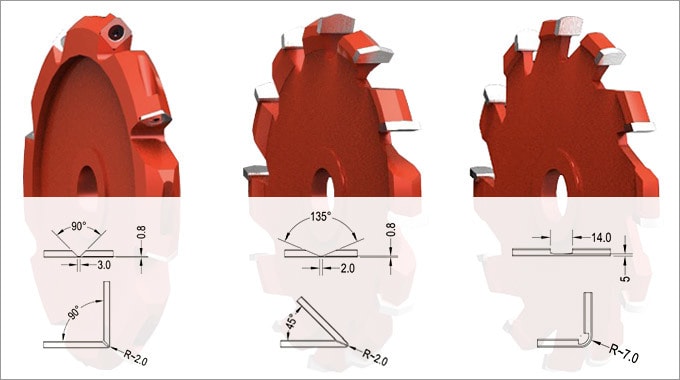

The Hendrick VSA ACM Duo isn’t just fast – it’s incredibly accurate at those speeds. Maintain precise depth-control and consistent groove quality, eliminating the need to constantly fly-cut your CNC router spoilboards. The VSA Duo’s blade options cover angle possibilities from sharp corners to 50°. Now your CNC router is free for cutting the developed shapes it was originally designed for.

vertical panel saw and groover

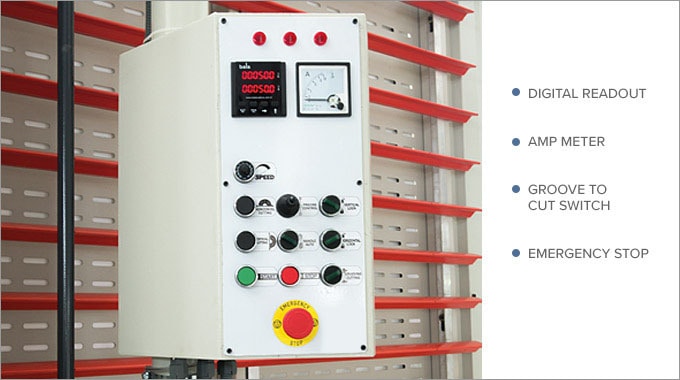

Stay on the cutting edge without being locked into upsells. The VSA Duo is delivered out of the box with features that are only available as “custom” from competing machines. Get digital positioning readouts in inch and metric. Enjoy smooth transverse motion thanks to a counter-balanced head and precision bearings. Switch from vertical cross-cutting and grooving to horizontal rip-cutting and grooving with a single lever. Save your operators strain with a fold-out mid-level shelf for small part fabrication while standing erect.

Not only does the VSA Duo cost less while performing the function of multiple machines, it also reduces man-hours while increasing productivity.

vertical panel saw and groover

VSA ACM DUO FEATURES GALLERY

  • Grooving Blades & Tooling

    Grooving Blades & Tooling

    Turnkey tooling package included as standard — All required depth control wheels, grooving profiles and main setup blade.

  • Angular Cutting Devices

    Angular Cutting Devices

    Two 0-50 degree angular cutting devices for left and right angles.

  • Rip Cut Position

    Rip Cut Position

    With one lever, the head quickly changes from vertical cross cutting to full length rip cutting mode.

VSA ACM DUO VERTICAL PANEL SAW DETAILS

MACHINE SIZE

  • VSA 15.25   4′ x 8′
  • VSA 17.50   5.7′ x 16′
  • VSA 20.40 6′ x 12′
  • VSA 20.50 6′ x 16′
  • Custom Sizes Available

SPECIFICATIONS

  • 1.5″
  • 5 HP Totally Enclosed Fan Cooled
  • 208/230/460 Volt – 3 Phase – 60 Hz
  • 9.05″
  • 7.87″
  • SPECIFICATIONS

    • 5800 RPM
  • 5800 RPM
  • Automatic Shifting
  • Precision Steel Roller Wheels
  • One-Piece, Free-Standing, Welded Tubular Steel
  • VSA ACM Duo, vertical panel saw and groover

    Click on the schematic to view fullscreen
